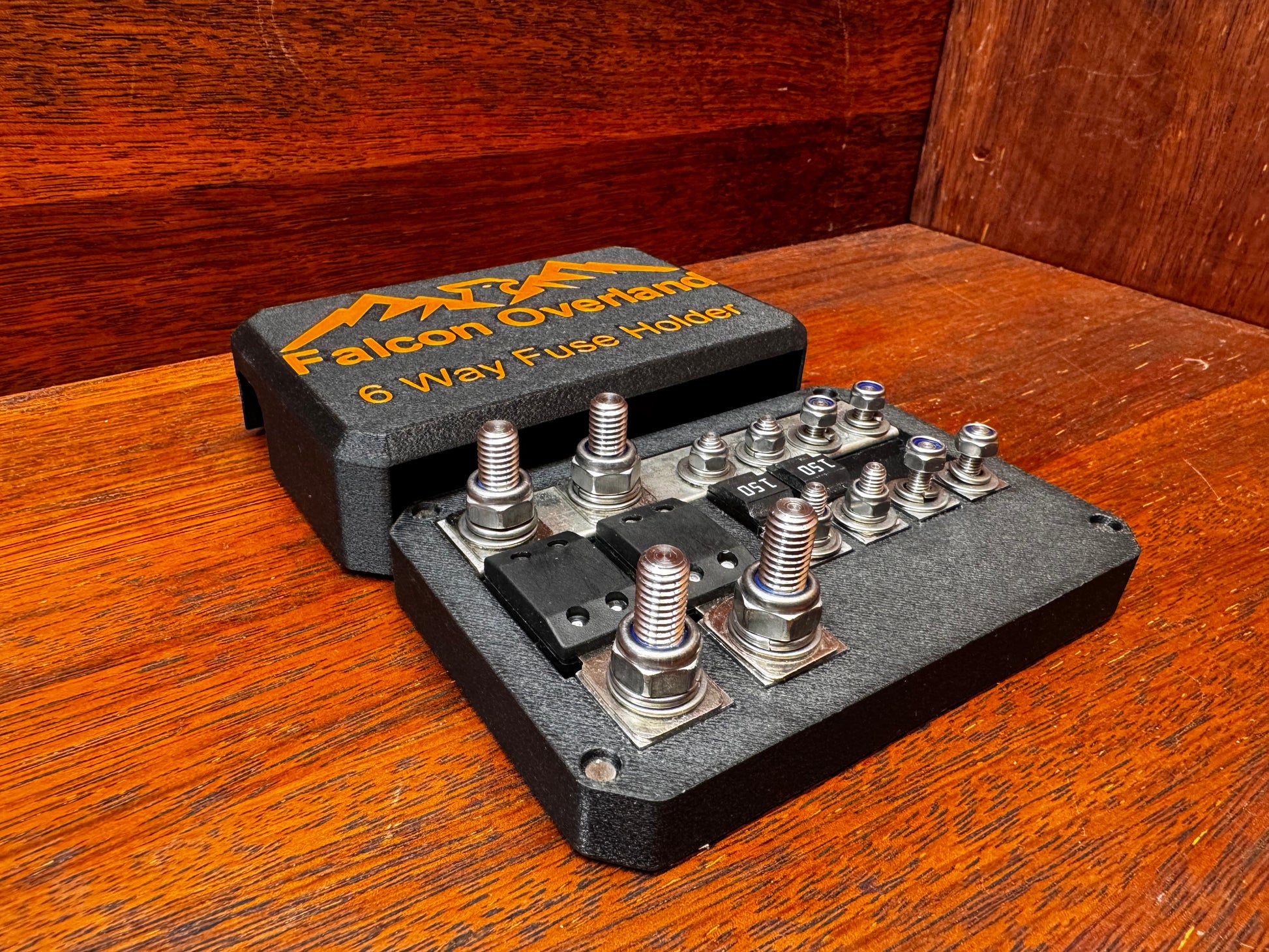

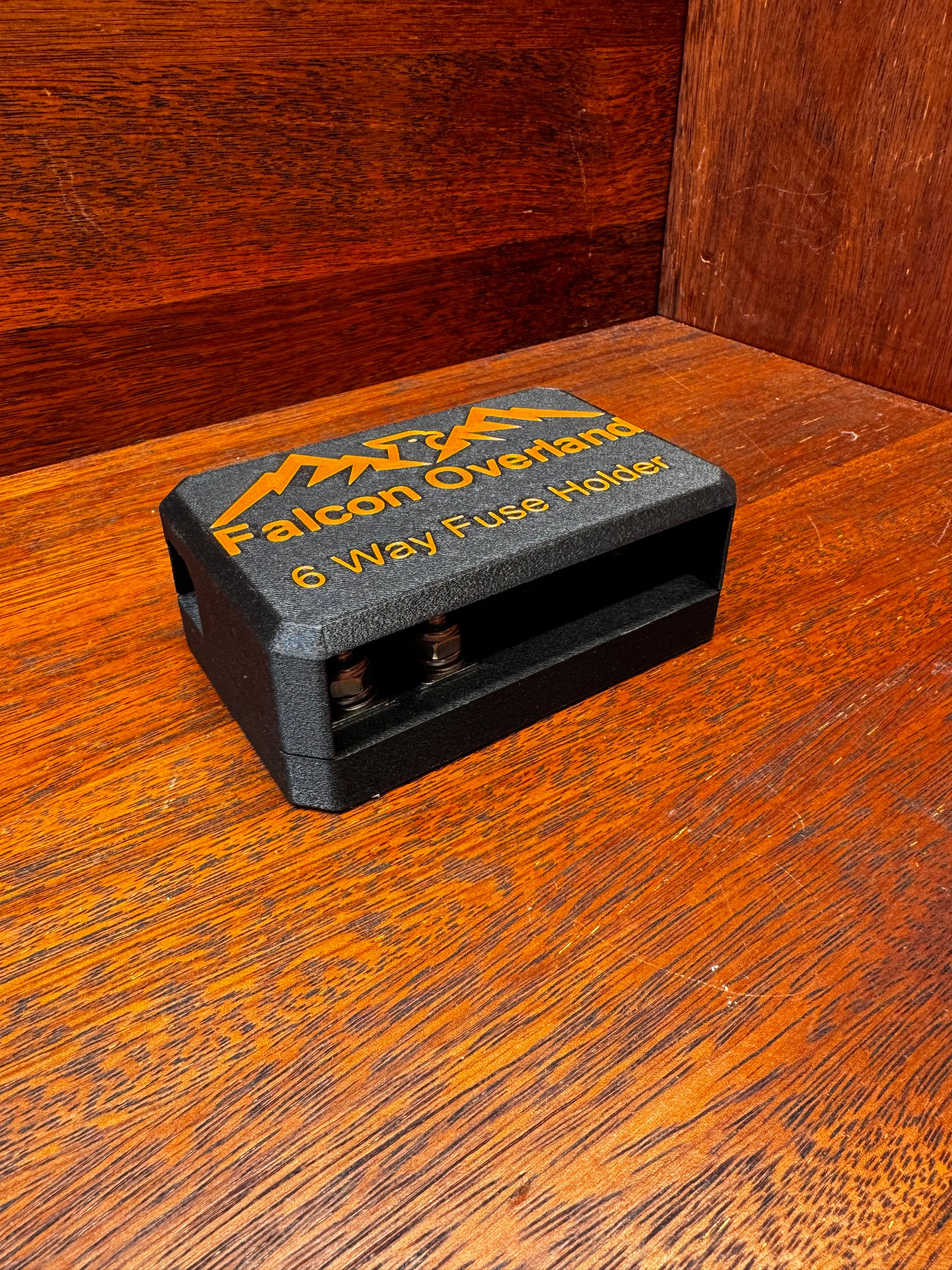

Our 6-Way MEGA & MIDI Fuse Holder is built for high-current 12V power distribution where reliability, compact size and solid mechanical construction matter.
We use massive press-fit stainless steel studs to provide strong, long-term mechanical stability, even in harsh 4WD, campervan, caravan and off-grid environments.
With a combination of MEGA and MIDI fuse outputs, this fuse holder gives you a clean and compact way to distribute power to multiple high-current circuits from one point.
Outputs
- 2 × MEGA fuse outputs — up to 350A continuous each
- 4 × MIDI fuse outputs — up to 150A continuous each
- 400A total output capacity
Ideal for distributing power to components such as:
- Inverters
- DC-DC chargers
- Solar controllers
- Switching hubs
- Auxiliary fuse boxes
- Other high-current 12V accessories
Dimensions
132mm Wide × 88mm Deep × 59mm High Dimensions include the lid.
Mounting
The fuse holder includes 4 mounting holes for secure installation.
Mounting holes are not shown in the current product photo.
