Falcon 4 Way Distributor

Introducing the Falcon Distribution System

Wiring your camper van's electrical system doesn’t have to be complicated or time-consuming. The Falcon Distribution streamlines the entire process, making it faster, safer, and easier—even if you’re not an electrical expert.

Falcon 4 Way Distributor Module

Streamline your electrical installs with a fully modular system—bolt together the modules you need and cut out messy wiring for good.

Falcon Distribution System Benefits

• Modular Simplicity
  Traditional installs mean wiring isolators, fuses, shunts, relays and switches one by one—a slow, error-prone process. Our Falcon Distribution System integrates all those components into neat, bolt-on modules. No messy wiring required.
• Massive Time Savings
  Slash installation time by 70 % compared to conventional wiring.
• Fewer Failure Points
  Reduce manual joints by 70 %, minimizing potential weak spots and maintenance headaches.
• Compact Footprint
  Take up 70 % less space than a traditional system.
• Future-Proof Expansion
  Add or rearrange modules as your power needs grow.
• Industry-Leading Warranty
  10-year warranty on the complete Falcon Distribution range.

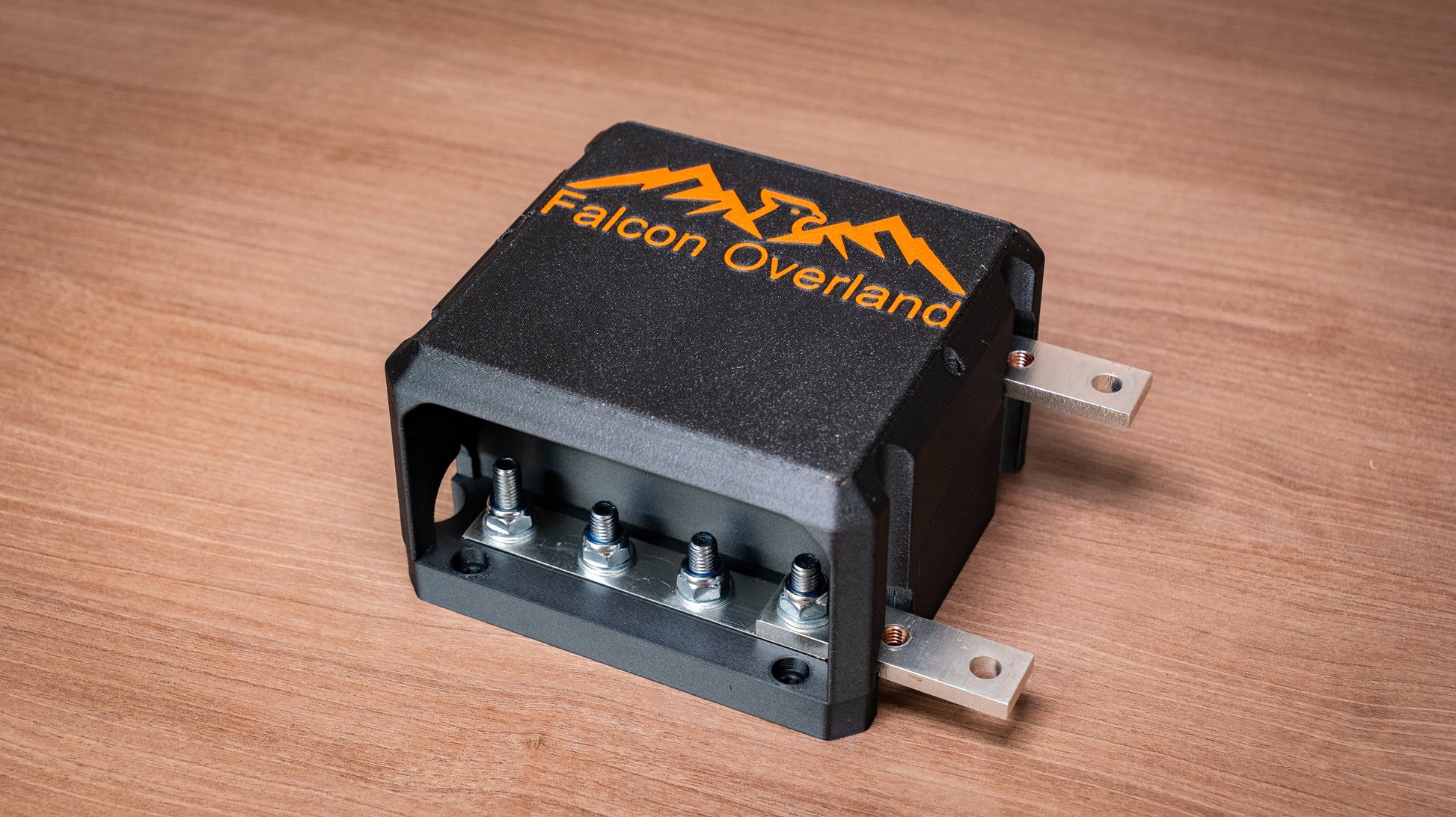

Falcon 4 Way Distributor Module

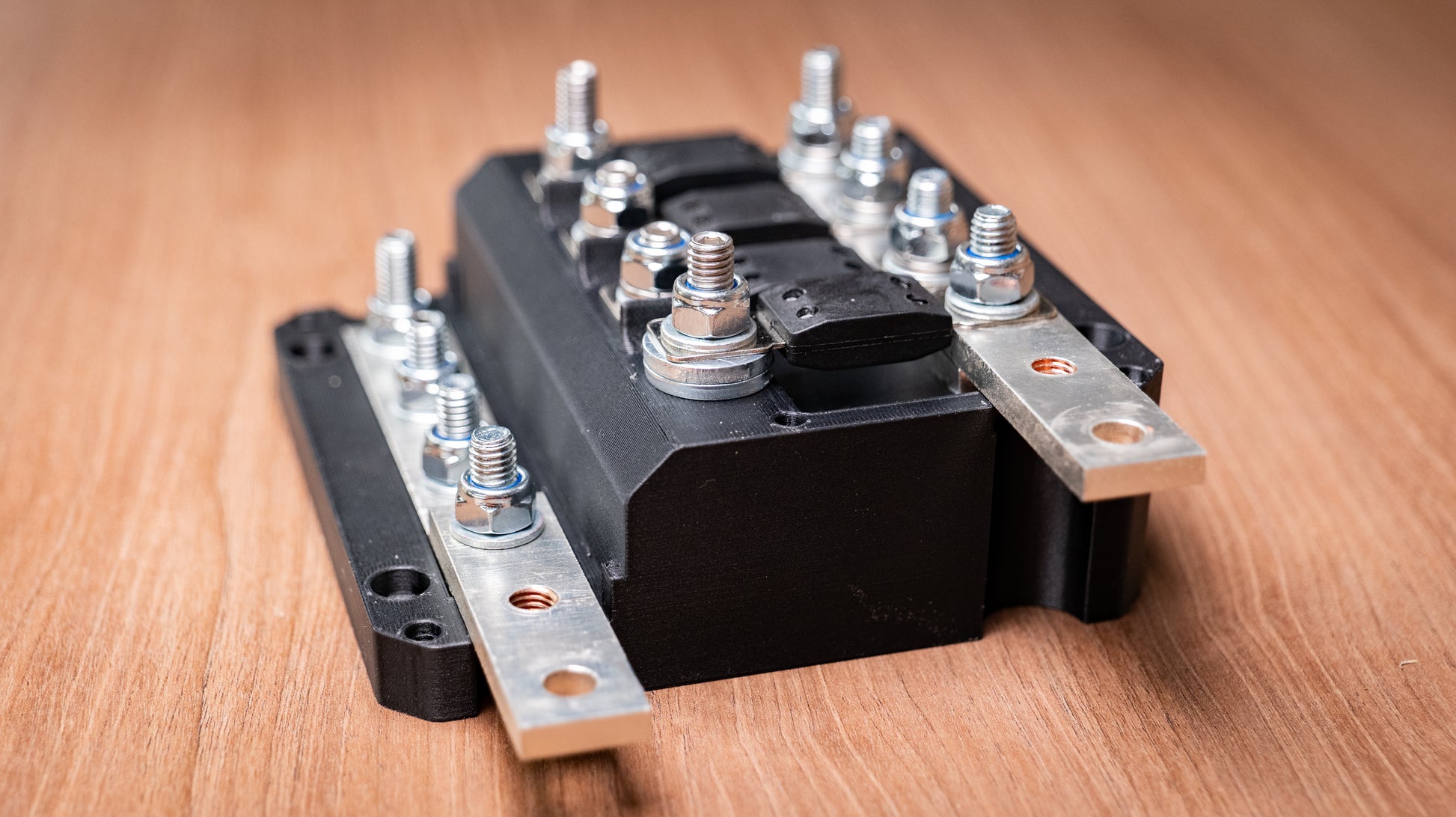

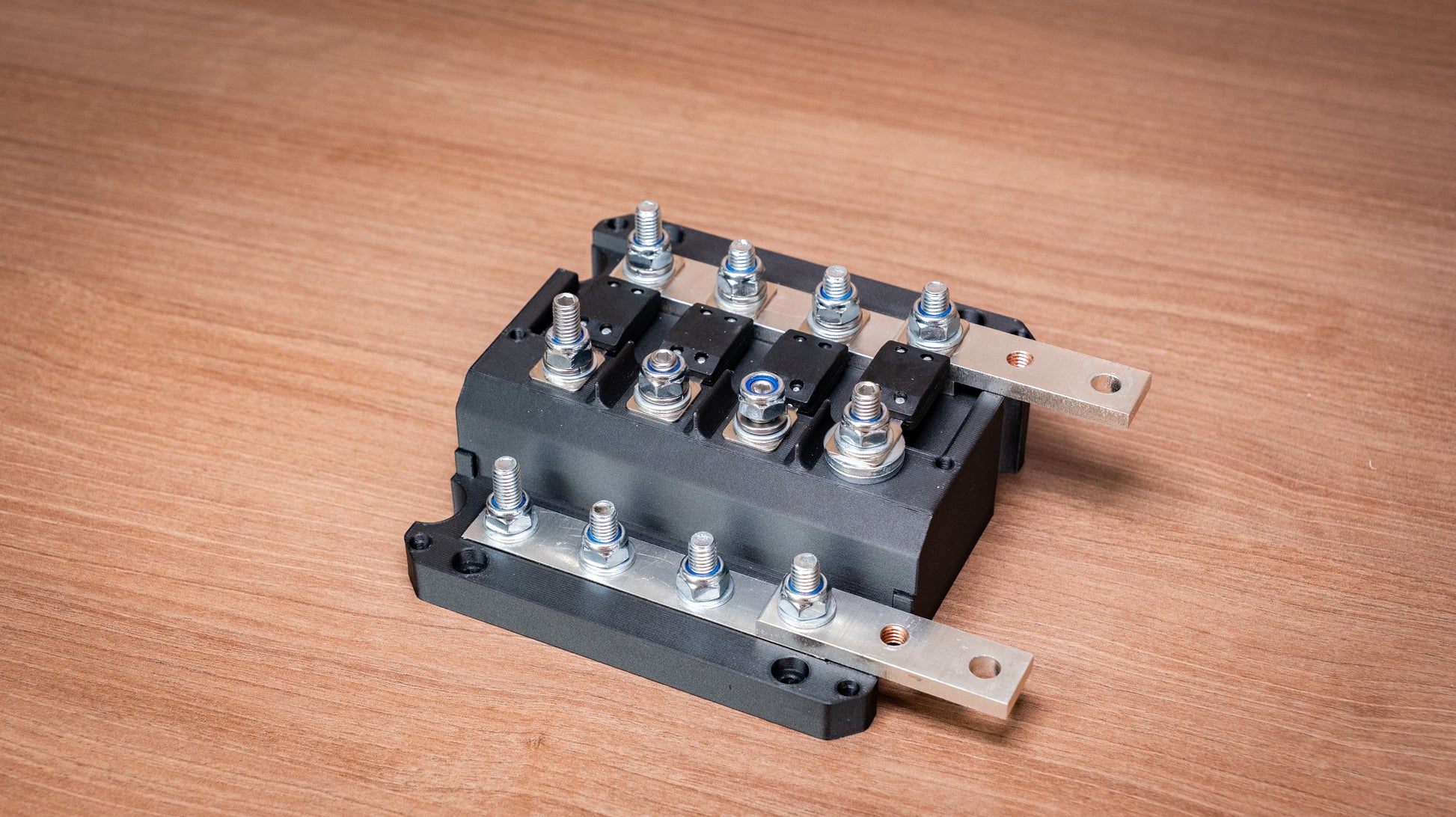

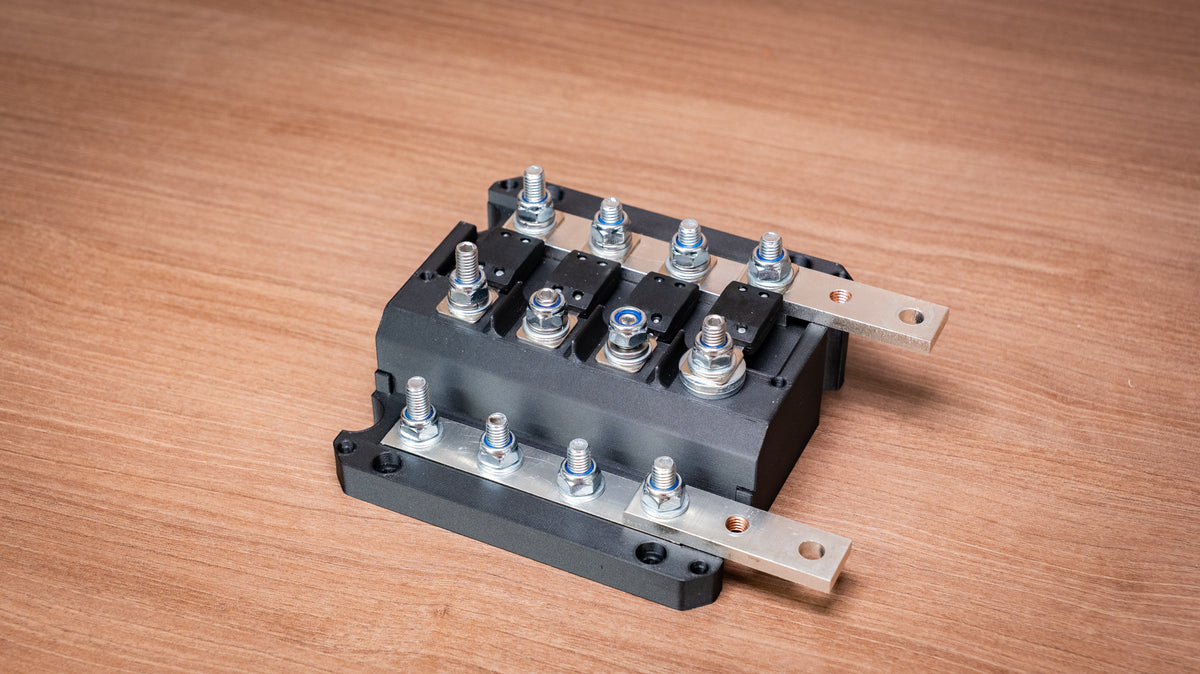

Our 4 way distributor allows you to add 4 MEGA fuse inputs/outputs to your Falcon Distribution system. Perfect for connecting up to 4 batteries or distributing power to a large inverter and multiple chargers.

If 4 outputs aren’t enough, you can bolt as many as you like together.

You can have the joining busbars on the left or right to build your perfect system.

Dimensions

• Without busbars: 111 mm W × 136 mm D × 85 mm H
• With busbars: 146 mm W × 136 mm D × 85 mm H

Specifications (All Ratings are Continuous Ratings)

• High-Current Outputs/Inputs
  • 4 × 350A
• Performance Limits
  • Max combined current: 400A
  • Max pass-through current: 400A

• Busbar Size
  • 120mm² Tin-Coated Copper Busbars
