Falcon 8 Way Distributor

Introducing the Falcon Distribution System

Wiring your camper van's electrical system doesn’t have to be complicated or time-consuming. The Falcon Distribution System streamlines the entire process, making it faster, safer, and easier—even if you’re not an electrical expert.

Falcon 8 Way Distributor Module

Streamline your electrical installs with a fully modular system—bolt together the modules you need and cut out messy wiring for good.

Falcon Distribution System Benefits

• Modular Simplicity
  Traditional installs mean wiring isolators, fuses, shunts, relays and switches one by one—a slow, error-prone process. Our Falcon Distribution System integrates all those components into neat, bolt-on modules. No messy wiring required.
• Massive Time Savings
  Slash installation time by 70 % compared to conventional wiring.
• Fewer Failure Points
  Reduce manual joints by 70 %, minimizing potential weak spots and maintenance headaches.
• Compact Footprint
  Take up 70 % less space than a traditional system.
• Future-Proof Expansion
  Add or rearrange modules as your power needs grow.
• Industry-Leading Warranty
  10-year warranty on the complete Falcon Distribution range.

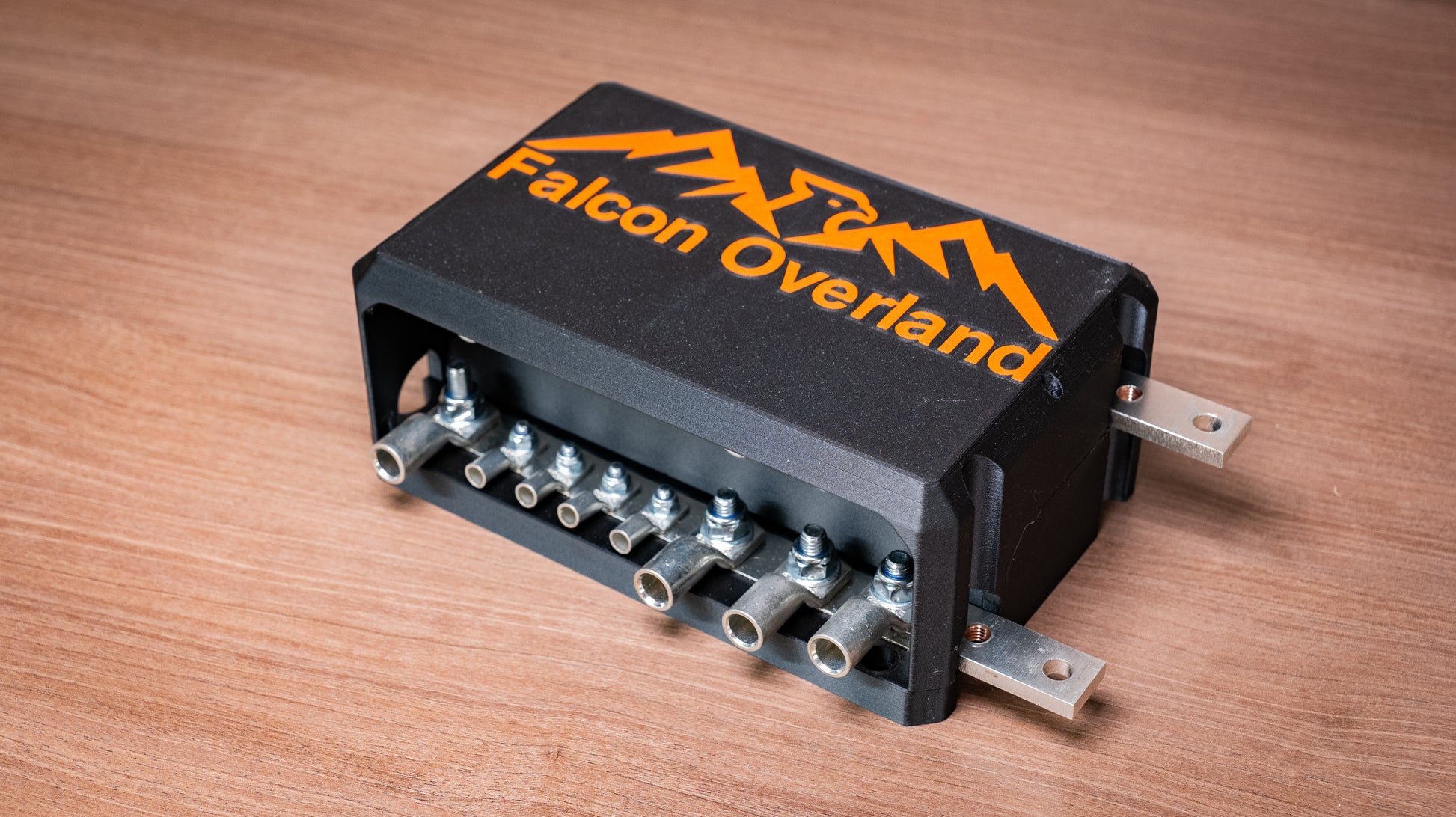

Falcon 8 Way Distributor Module

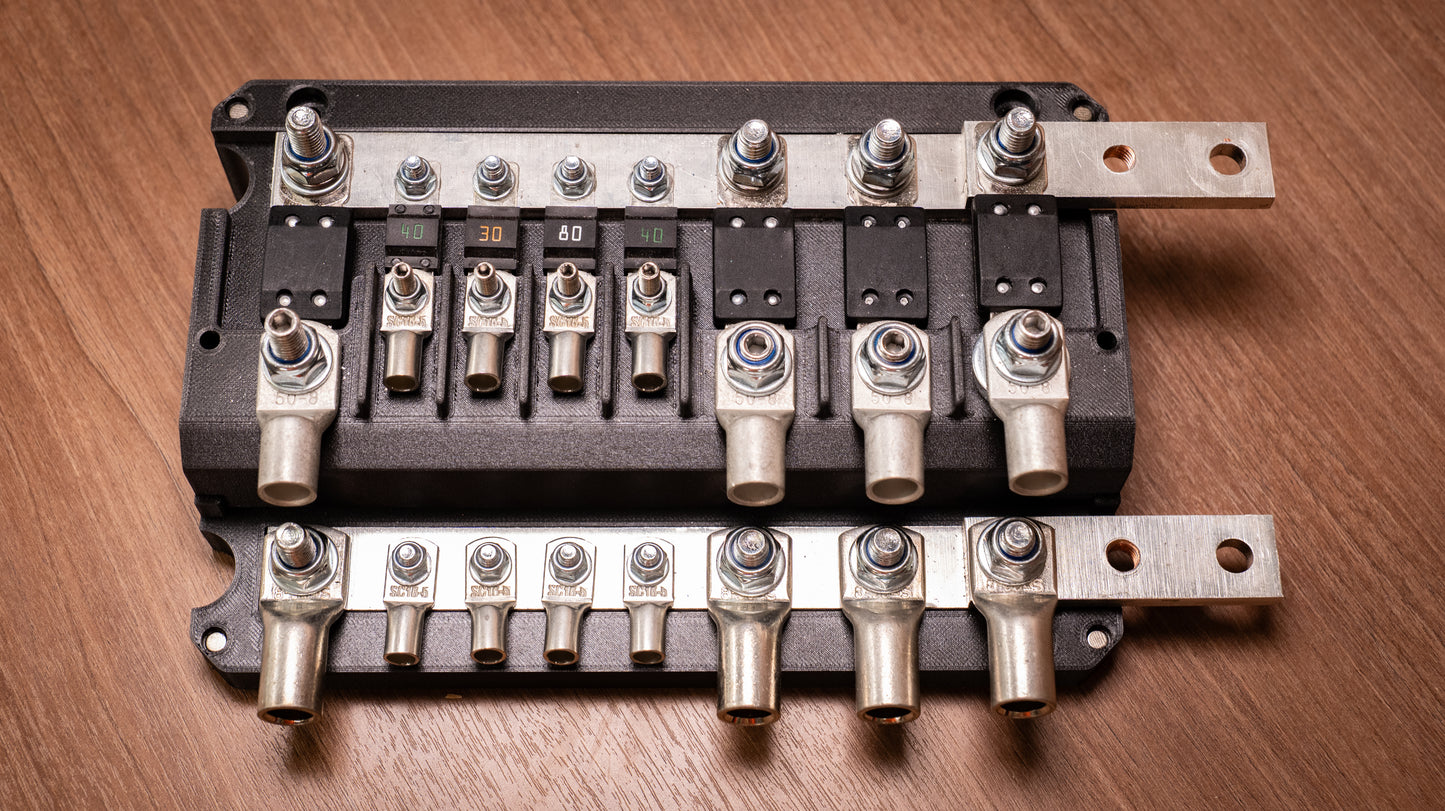

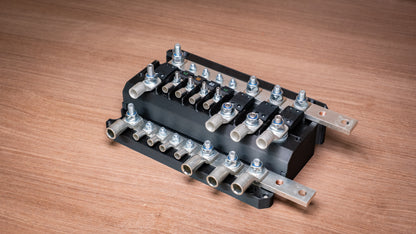

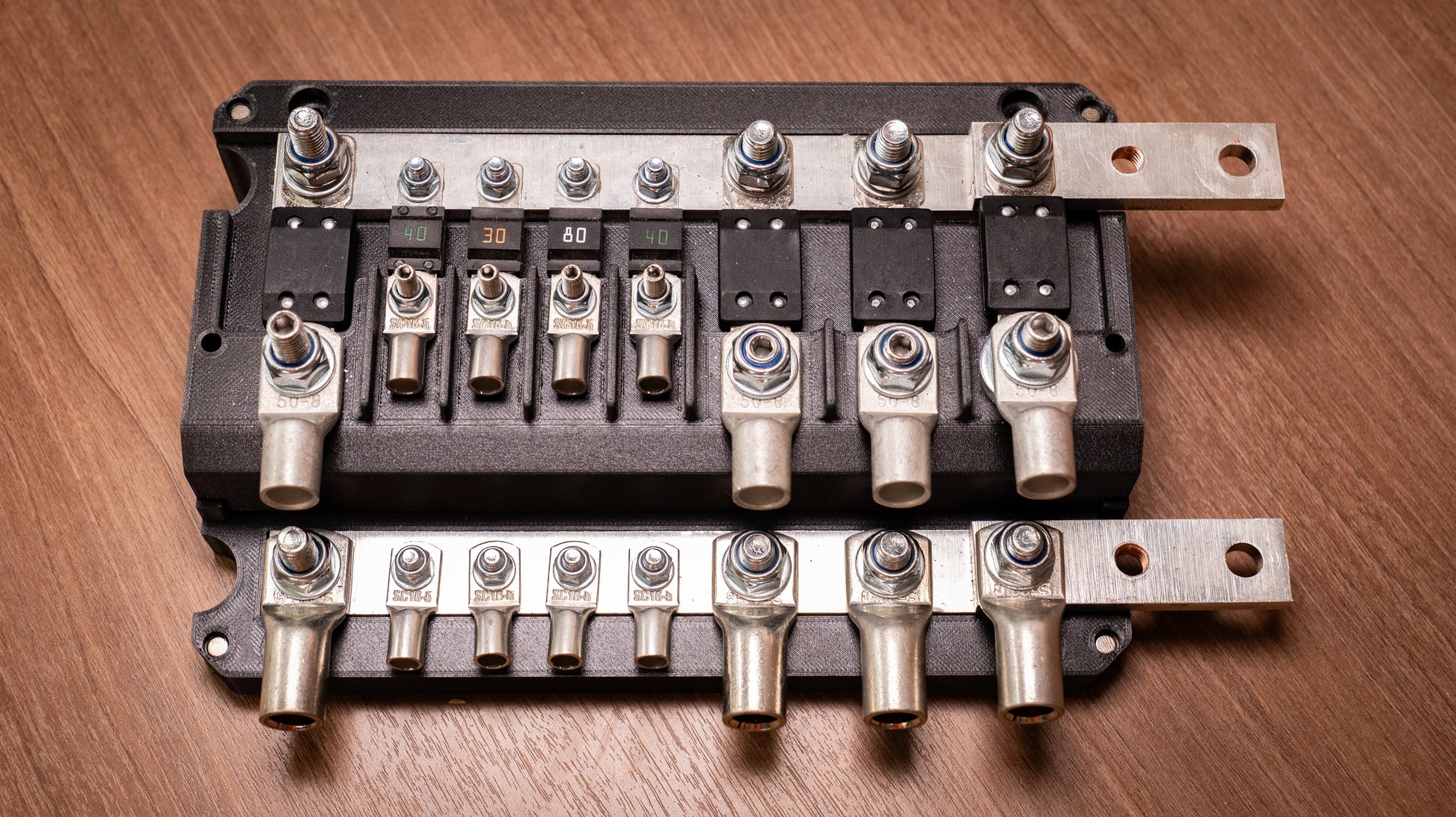

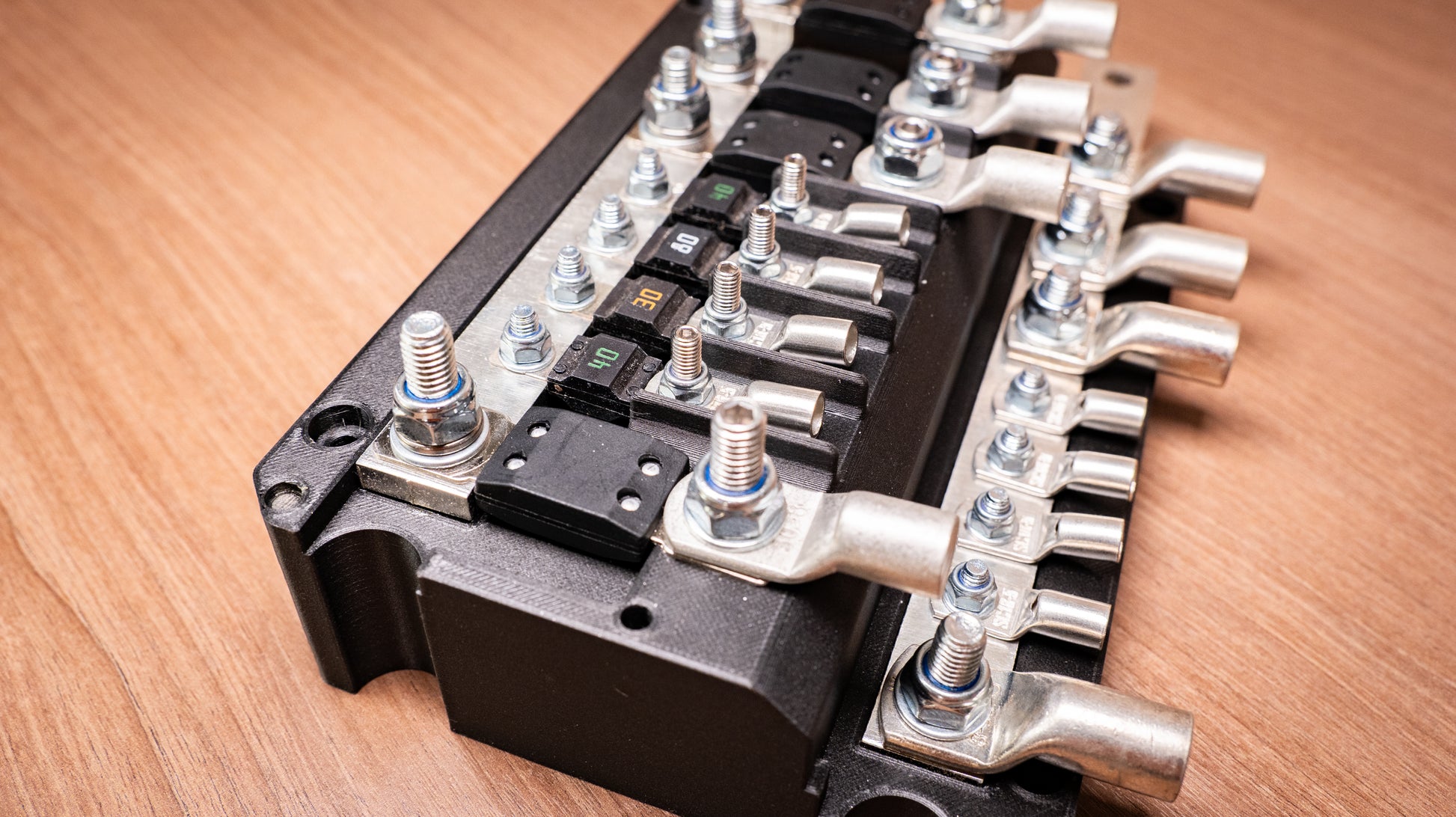

Our 8 way distributor allows you to add 4 MEGA fuse and 4 MIDI fuse inputs/outputs to your Falcon Distribution System. Perfect for connecting your batteries and/or distributing power to a large inverters and multiple chargers and other accessories that draw between 20A to 350A.

If 8 outputs aren’t enough, you can bolt as many as you like together.

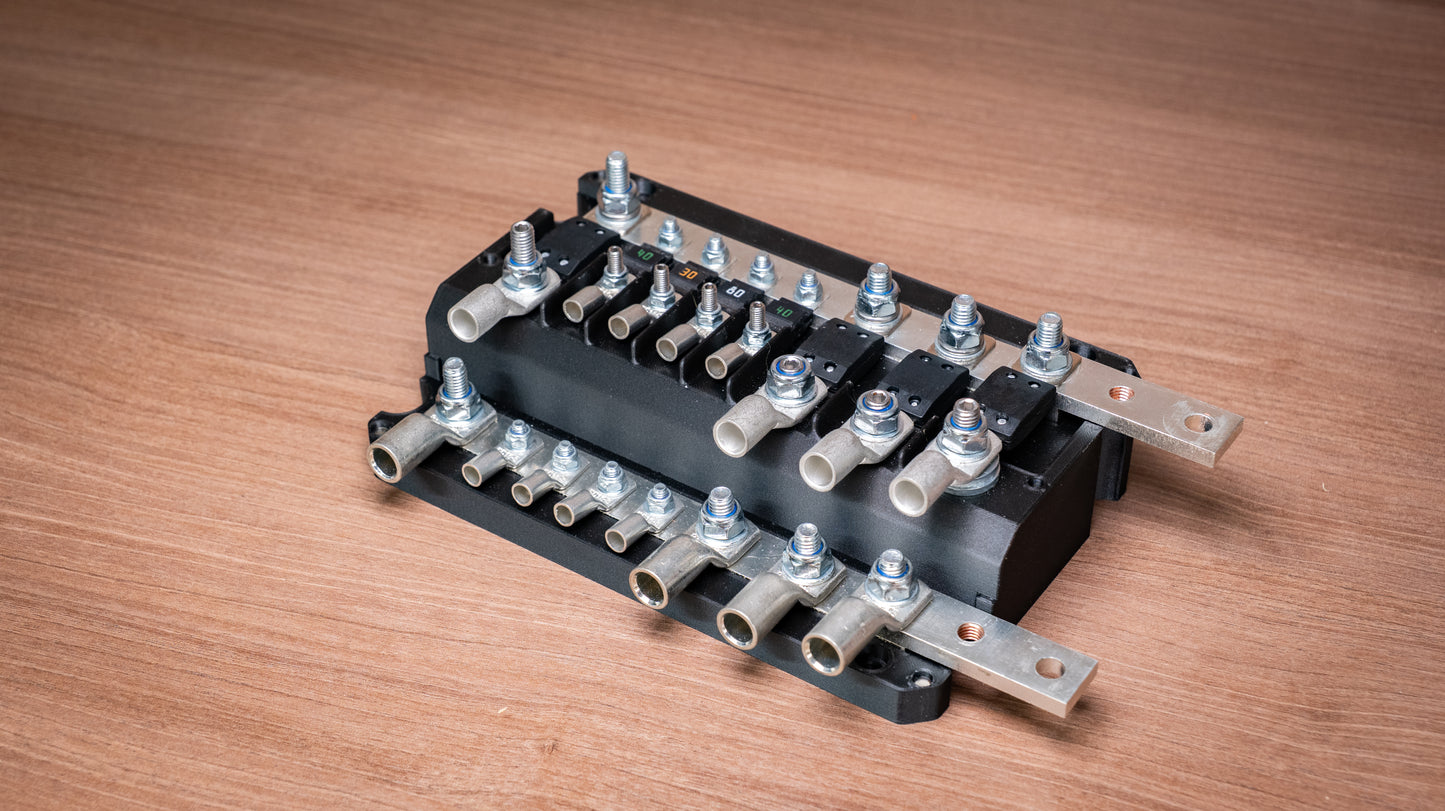

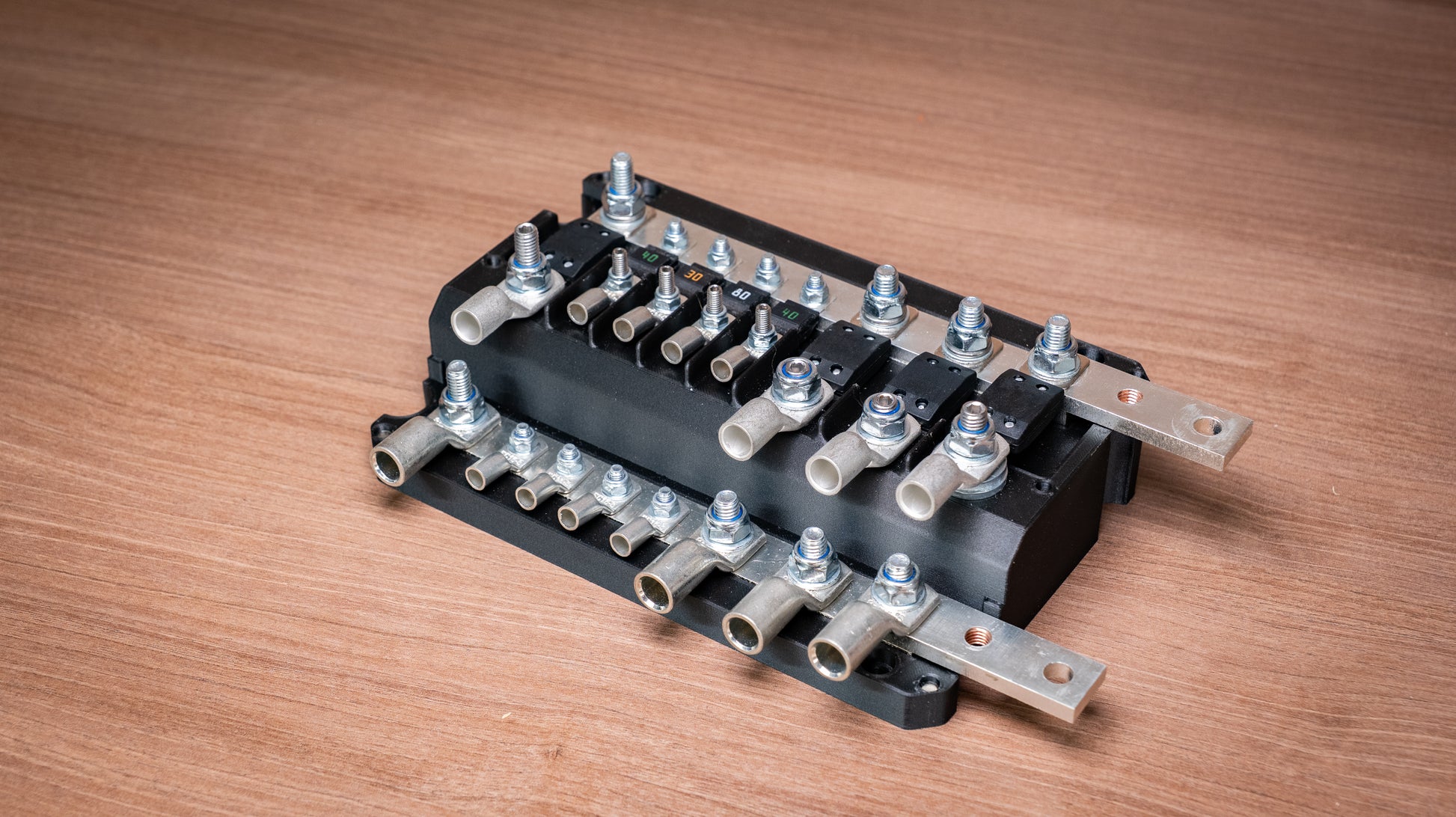

You can place the joining busbars on the left or right of the module to build your perfect system.

Dimensions

• Without busbars: 210 mm W × 136 mm D × 85 mm H
• With busbars: 245 mm W × 136 mm D × 85 mm H

Specifications (All Ratings are Continuous Ratings)

• High-Current Outputs/Inputs
  • 4 x 350A
  • 4 x 135A
• Performance Limits
  • Max combined current: 400A
  • Max pass-through current: 400A

• Busbar Size
  • 120mm² Tin-Coated Copper Busbars
