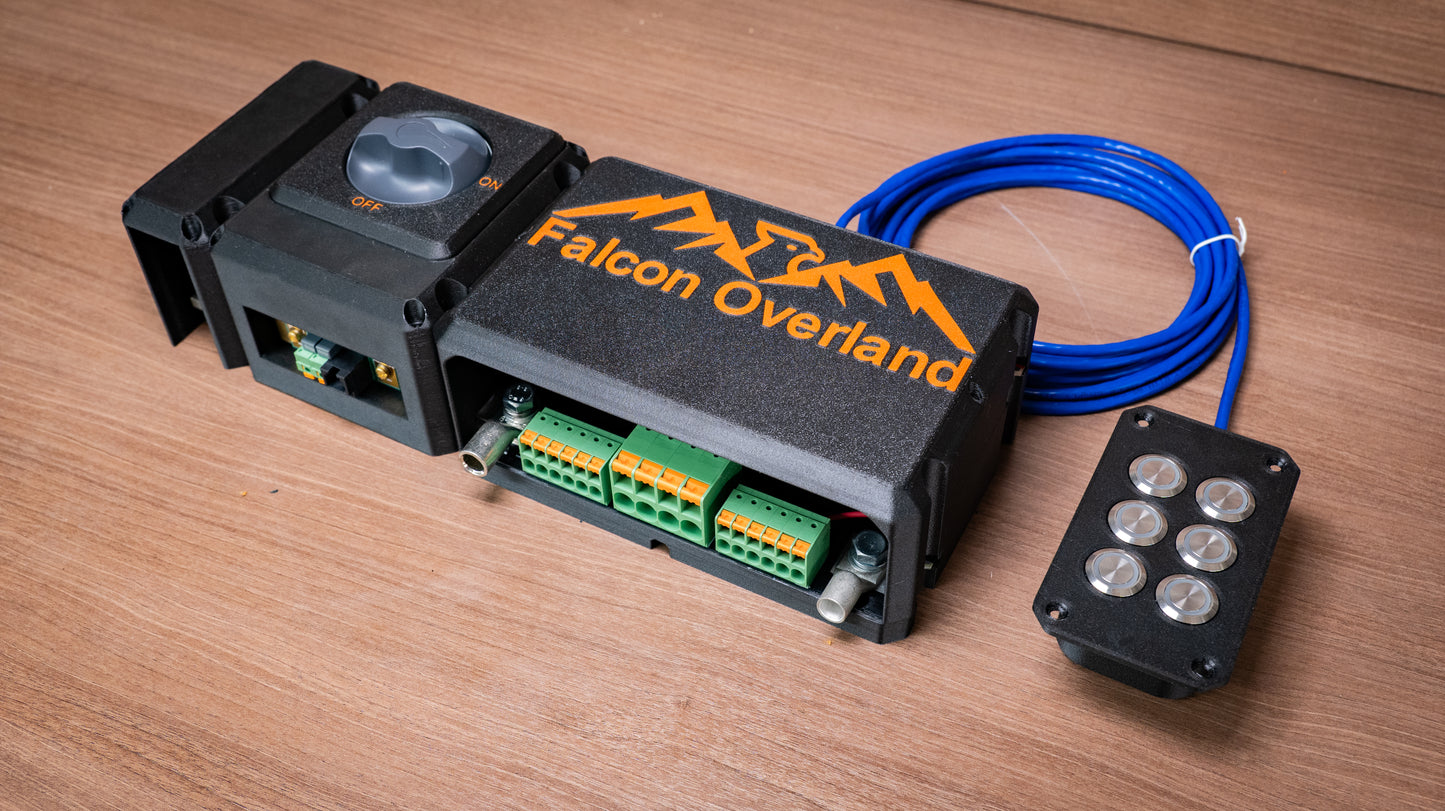

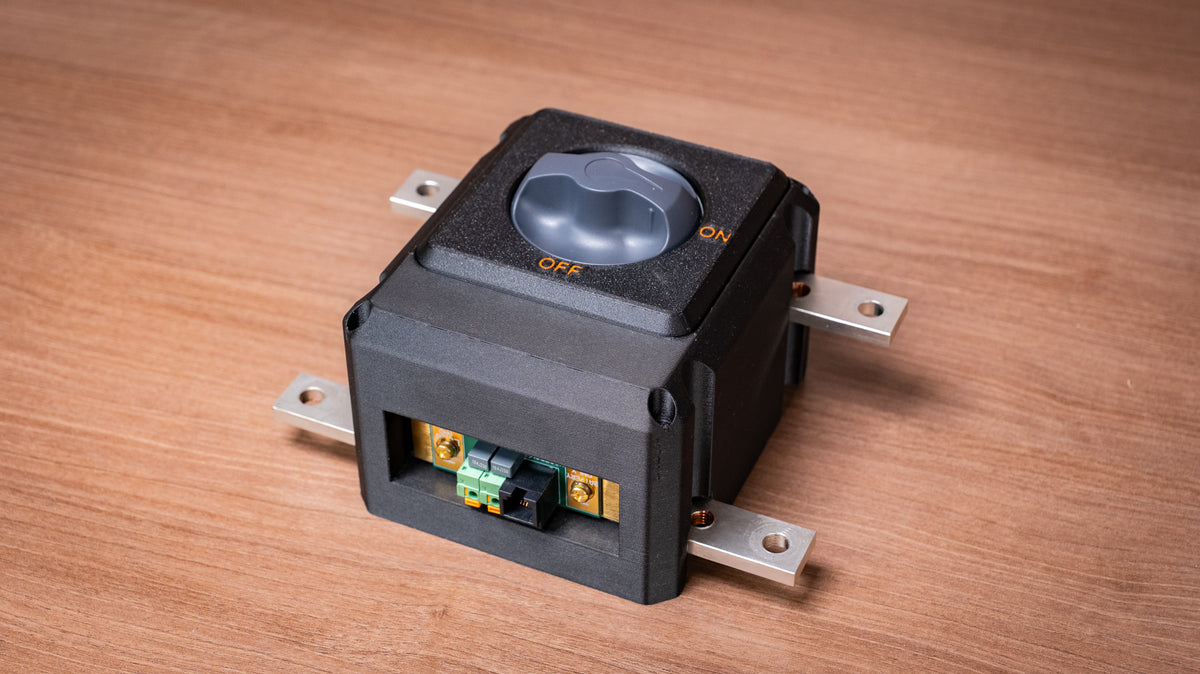

The Falcon Isolator Module lets you isolate your house electrical system from the battery in seconds - ideal for maintenance, storage, fault-finding, or as an added safety shutoff.
Built to bolt straight into the Falcon Distribution System, this module keeps everything compact and tidy by combining high-current isolation with an integrated shunt-based battery monitor (Victron or Redarc) for accurate State of Charge tracking.
Key Benefits
Fast system isolation - Disconnect your system from the battery quickly for servicing, storage, and safety.
Integrated battery monitoring - Supplied with a Victron or Redarc battery monitor pre-installed so you can see accurate State of Charge and system performance without a messy, stand-alone shunt setup.
Modular Falcon compatibility - Pairs with any Falcon Distribution module so you can build exactly what your setup needs now and expand later.

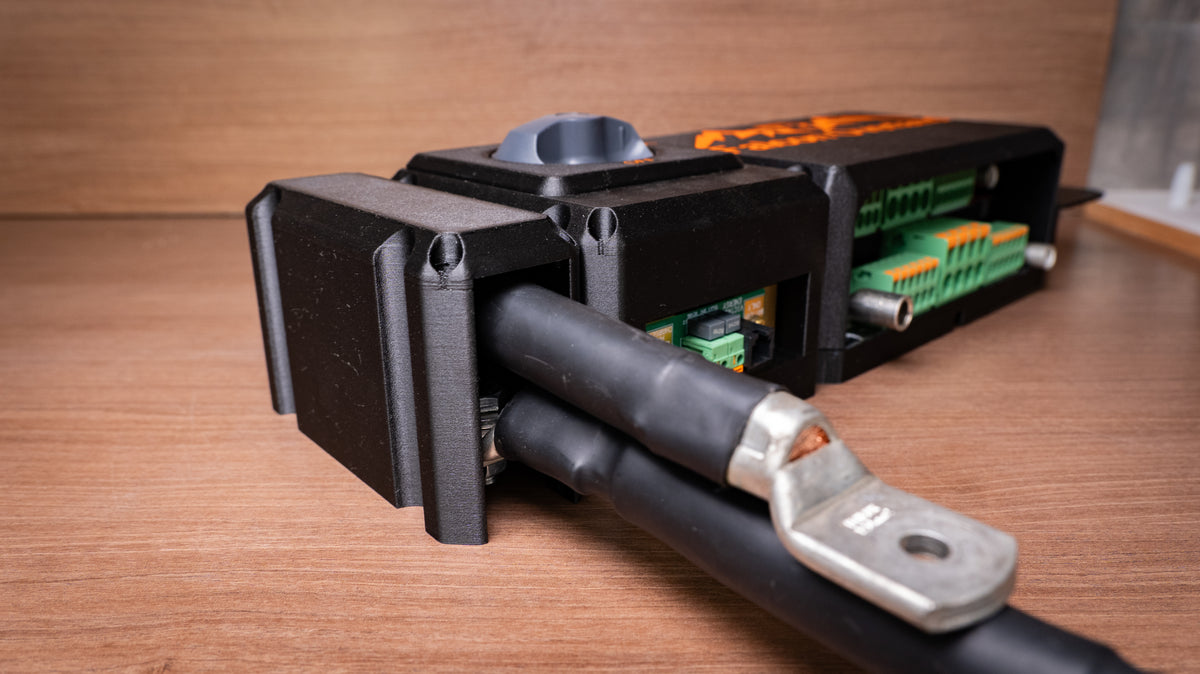

Left or right battery positioning - Batteries can sit on either side of the isolator, giving you maximum flexibility in tight installs and custom layouts.
Optional Starter Battery Input Add a starter battery input to link your lithium battery to your starter battery when you need it:
Jump-start support — use your lithium system to assist/jump-start your vehicle
Lithium Battery recovery — wake/recover a lithium battery from a very low state of charge (deep sleep)
Fused starter battery feed — provision for up to two DCDC charger starter battery inputs
Pair the Falcon Isolator Module with the Falcon Switching & Distribution Hub for an ultra-compact, high-performance system—plenty of circuits to run a high-end campervan/4WD setup, with room to grow.
Specs
300A continuous
500A for 5-minute intervals
1000A for 10-second bursts
Dimensions

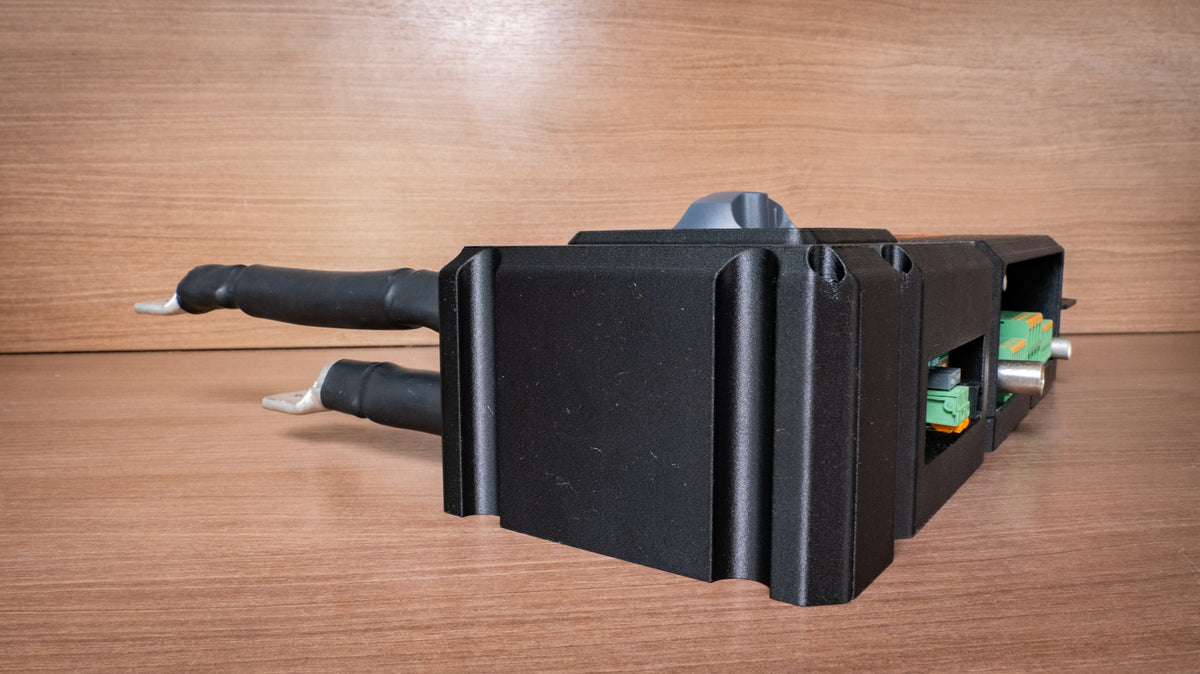

Falcon Overland Isolator Module - 116mm Wide x 135mm Deep x 103mm High. (186mm Wide including busbars)
Falcon Overland Isolator with Starter Module - 185mm Wide x 135mm Deep x 103mm High. (255mm Wide including busbars)
