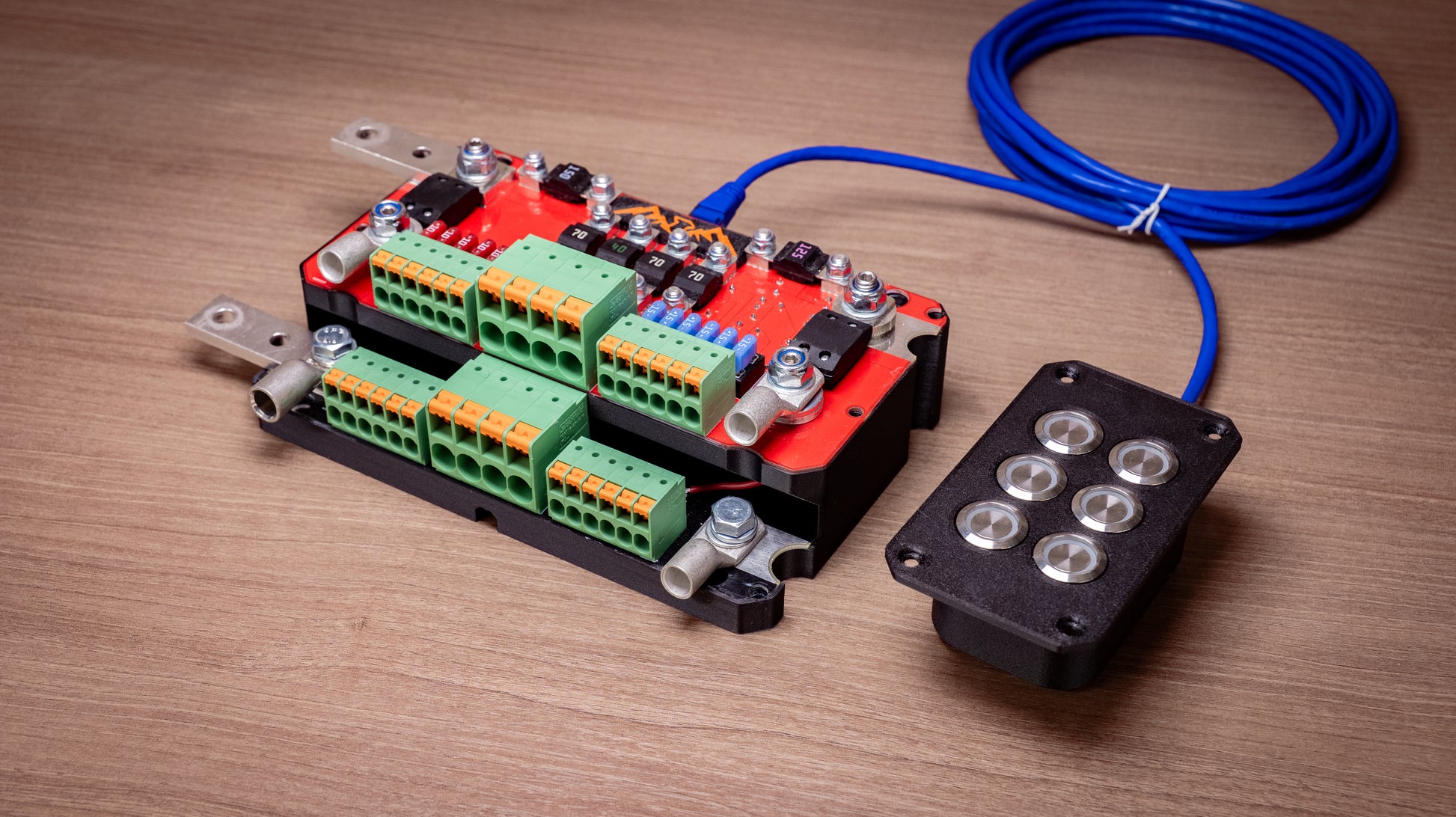

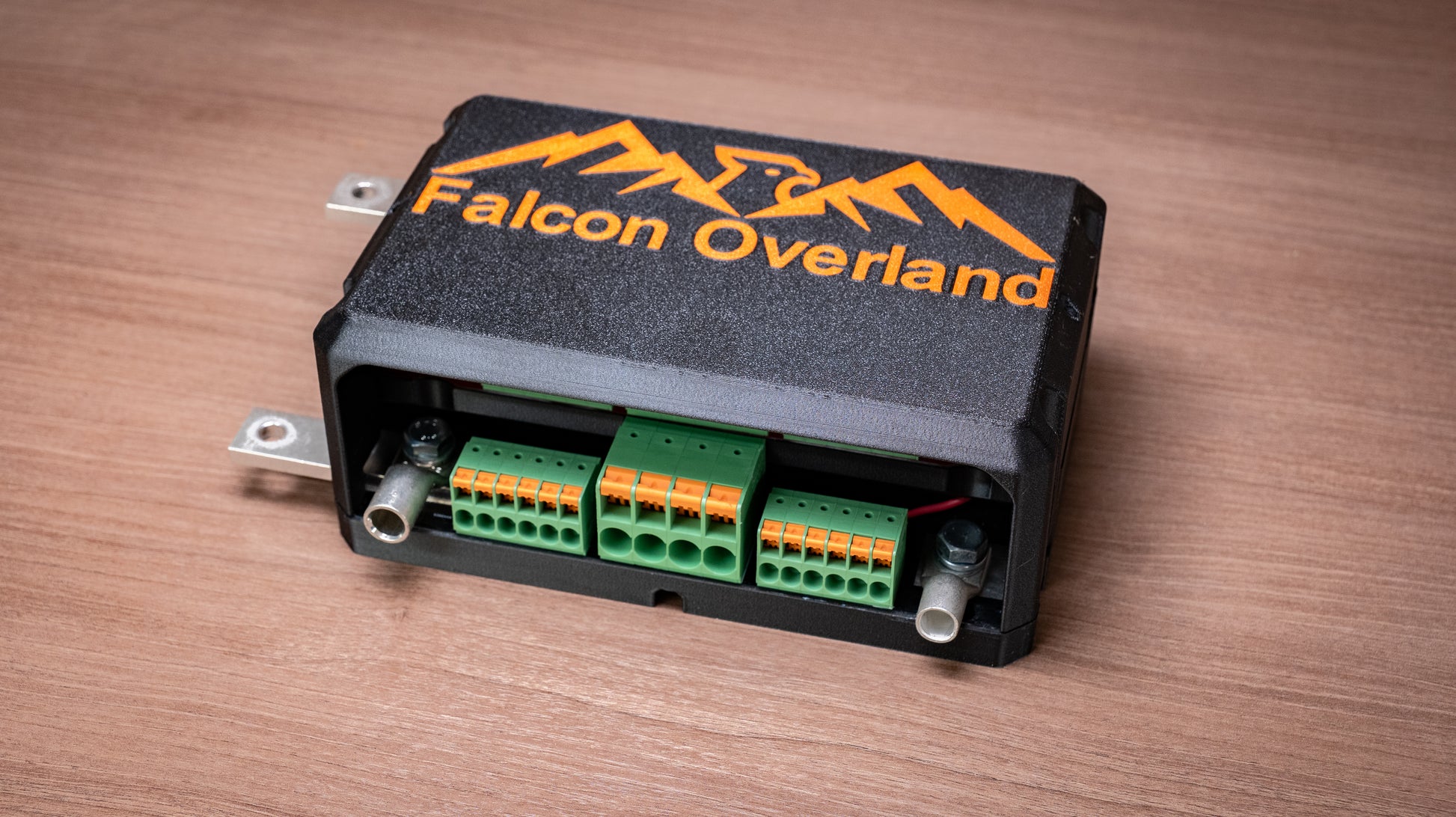

Falcon Switching & Distribution Hub

Falcon Switching & Distribution Hub

Streamline your electrical installs with a fully modular system—bolt together the modules you need and cut out messy wiring for good.

Key Benefits

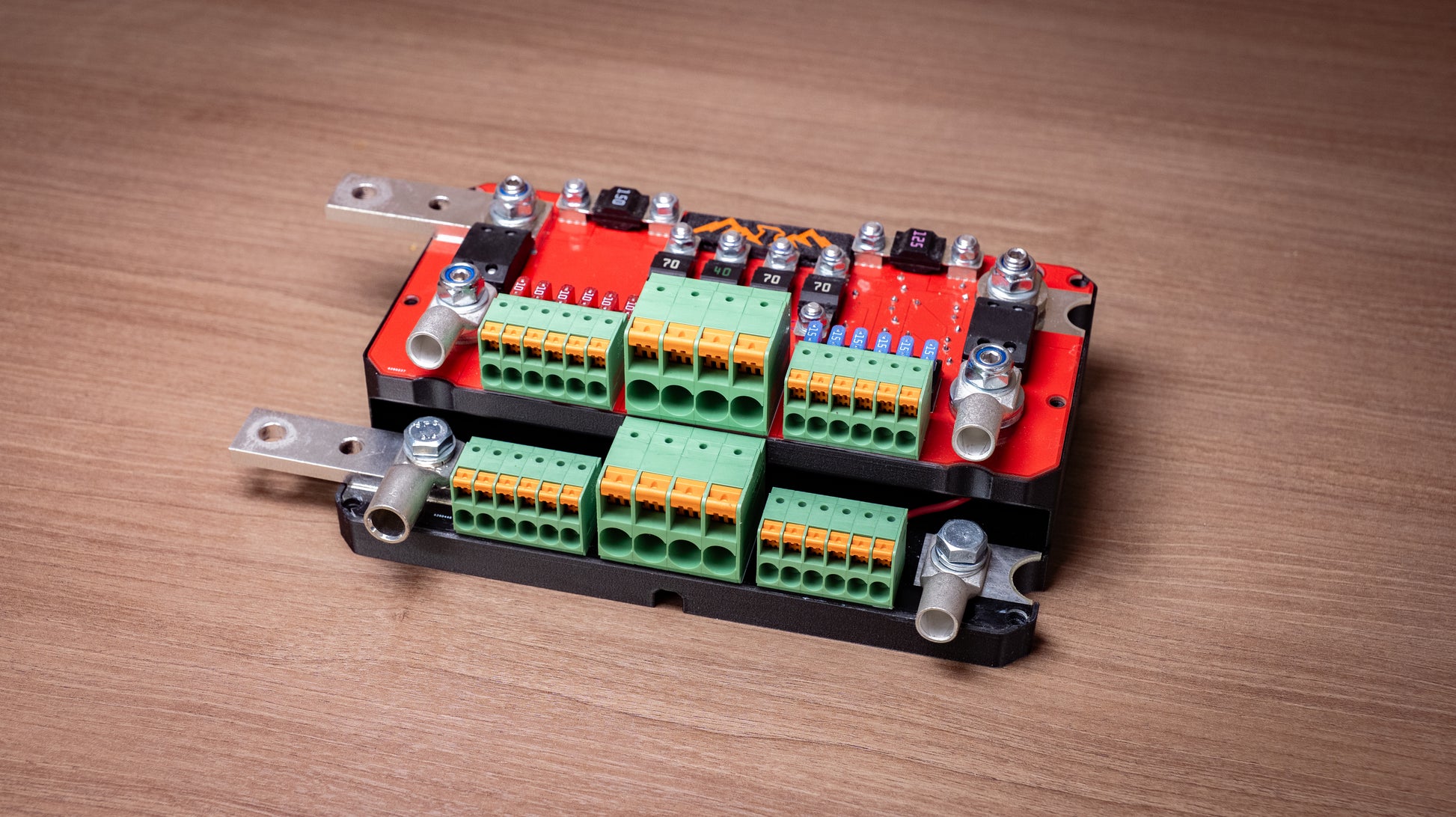

• Modular Simplicity
  Traditional installs mean wiring isolators, fuses, shunts, relays and switches one by one—a slow, error-prone process. Our Falcon Distribution System integrates all those components into neat, bolt-on modules. No messy wiring required.
• Massive Time Savings
  Slash installation time by 70 % compared to conventional wiring.
• Fewer Failure Points
  Reduce manual joints by 70 %, minimizing potential weak spots and maintenance headaches.
• Compact Footprint
  Take up 70 % less space than a traditional system.
• Future-Proof Expansion
  Add or rearrange modules as your power needs grow.
• Industry-Leading Warranty
  10-year warranty on the complete Falcon Distribution range.

Versatile Compatibility

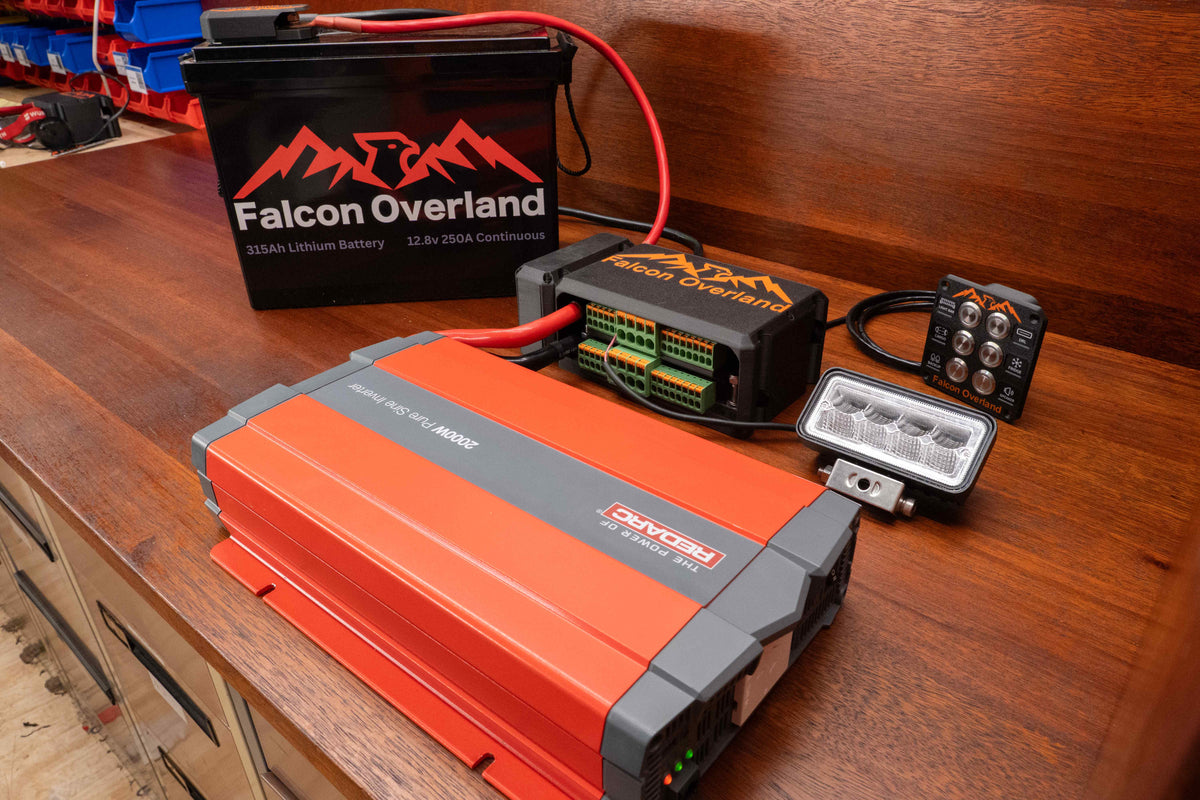

Connect everything from your inverter and solar/DCDC/AC chargers to accessories like:
• Fridges • Lights • Water pumps • AC units • Compressors

Pair it with our Shunt & Isolator Module for small-scale setups up to a single 3 kW inverter and 4–5 chargers.

Specifications at a Glance

• High-Current Outputs/Inputs
  • 1 × 400 A
  • 1 × 125 A
• Medium-Current Outputs/Inputs
  • 4 × 60 A
  • 6 × 20 A

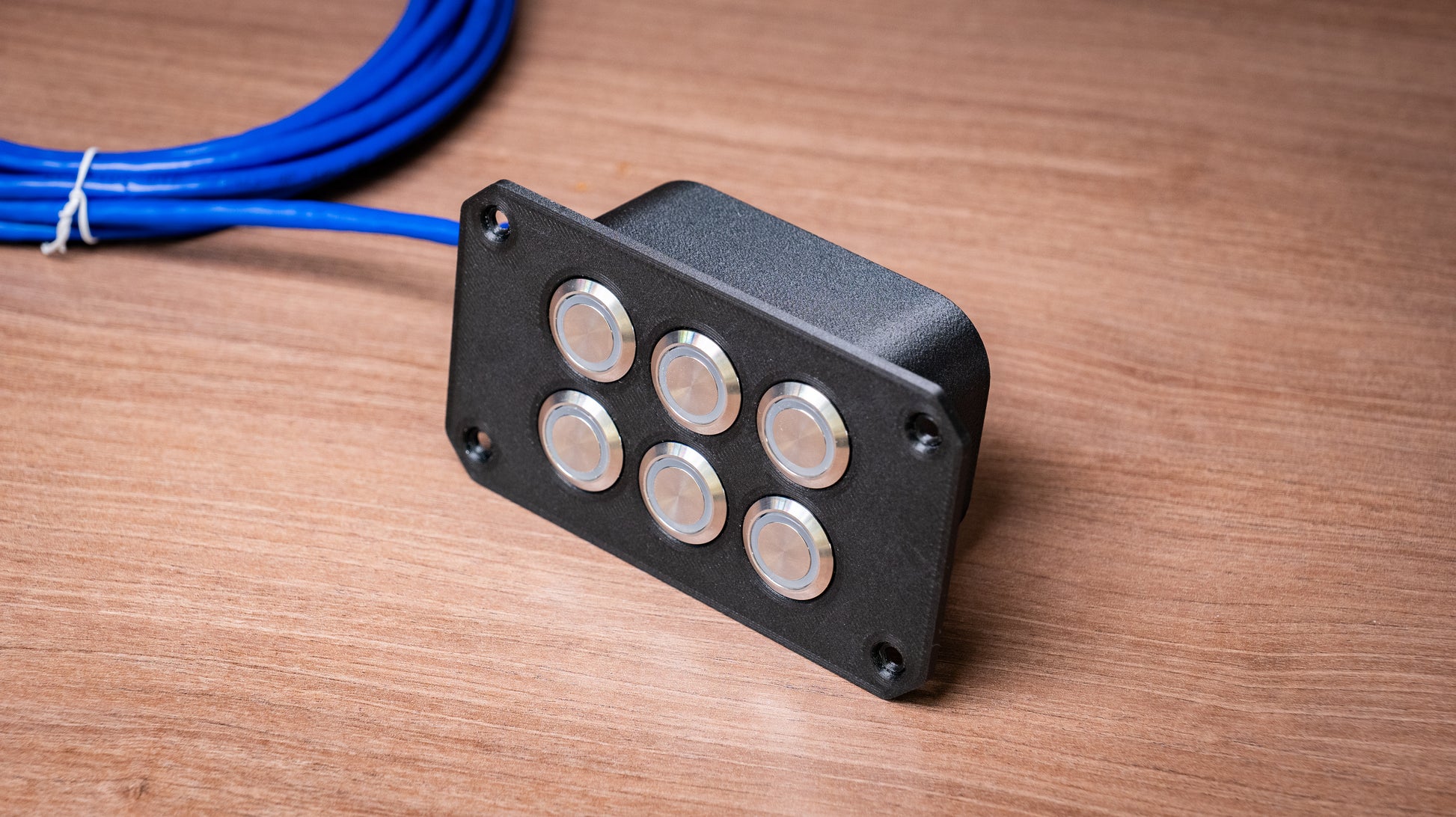

• Switchable Outputs
  • 6 × 15 A
• Performance Limits
  • Max combined current: 125 A + 400 A on the 400 A output
  • Max pass-through current: 125 A

Dimensions

• Without busbars: 211 mm W × 136 mm D × 85 mm H
• With busbars: 246 mm W × 136 mm D × 85 mm H

Design cleaner installs, cut downtime, and scale as you grow—Falcon’s Switching & Distribution Hub is the heart of your next electrical system.

Download Warranty Information

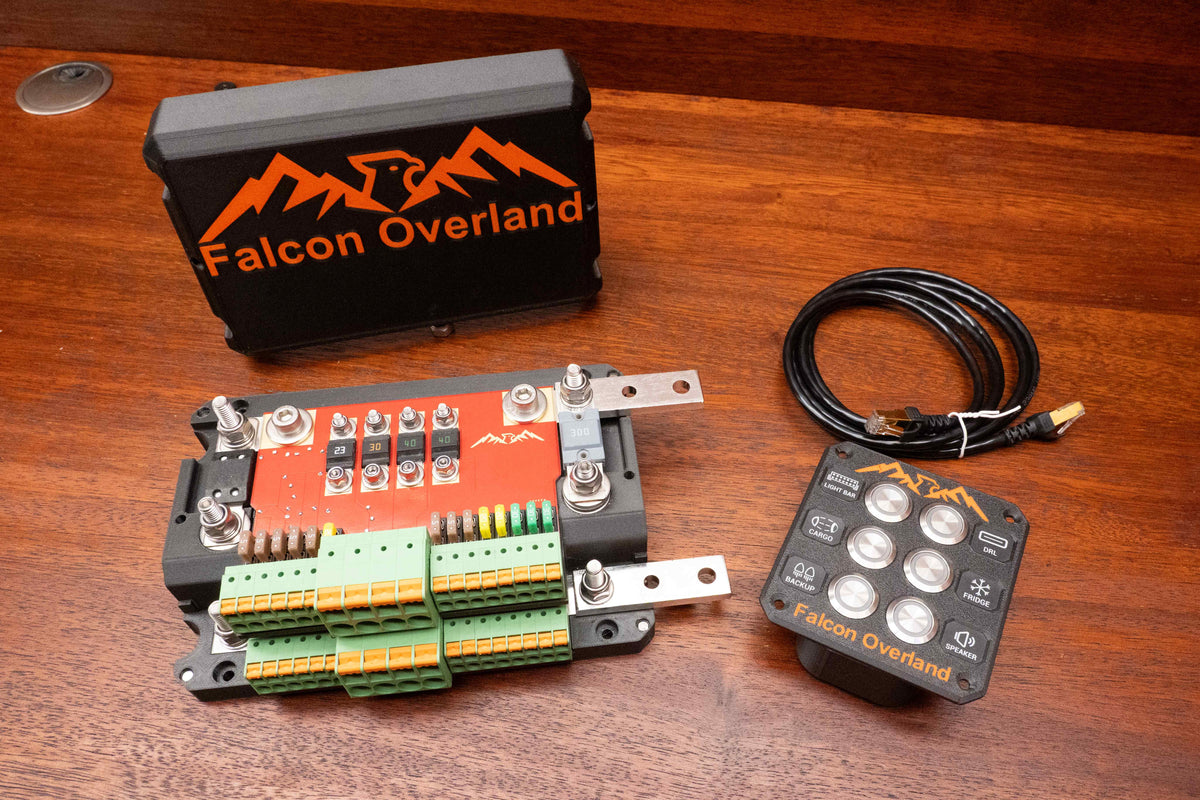

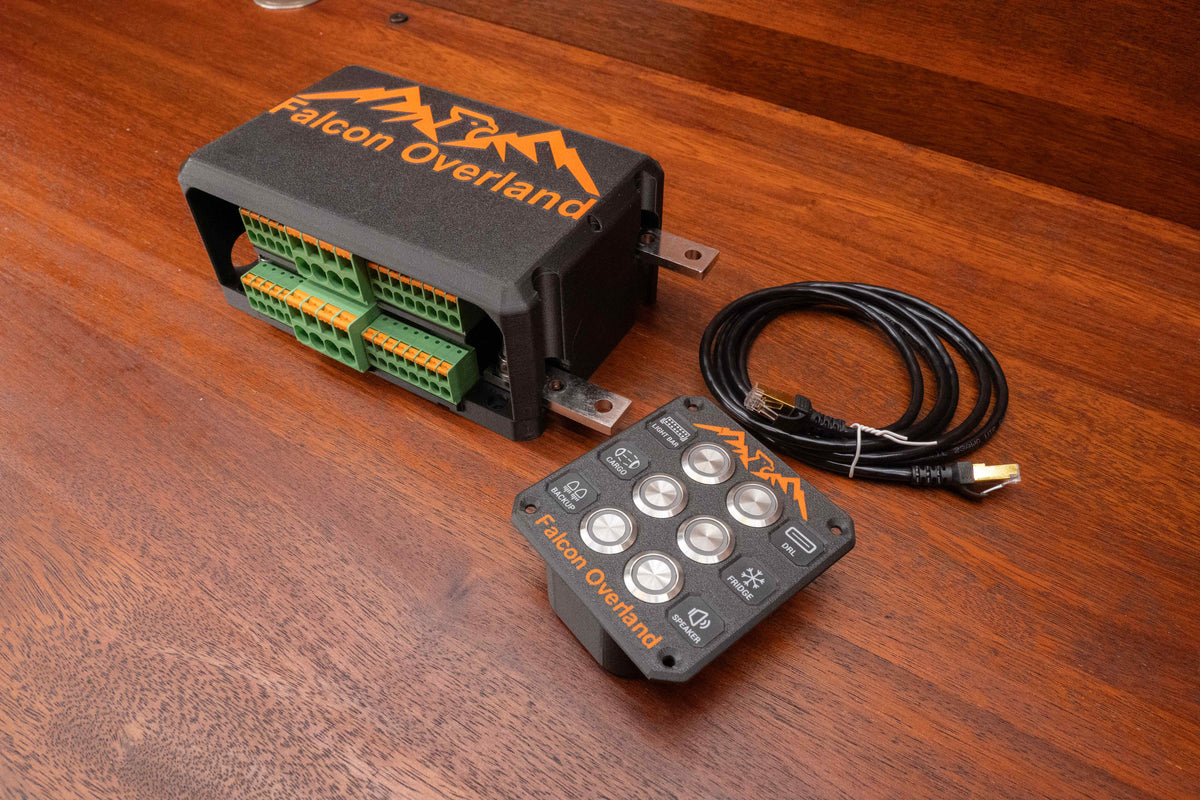

Please refer to the “What’s Included” photo, The shunt and isolator module, end caps and Fuses are sold separately.
