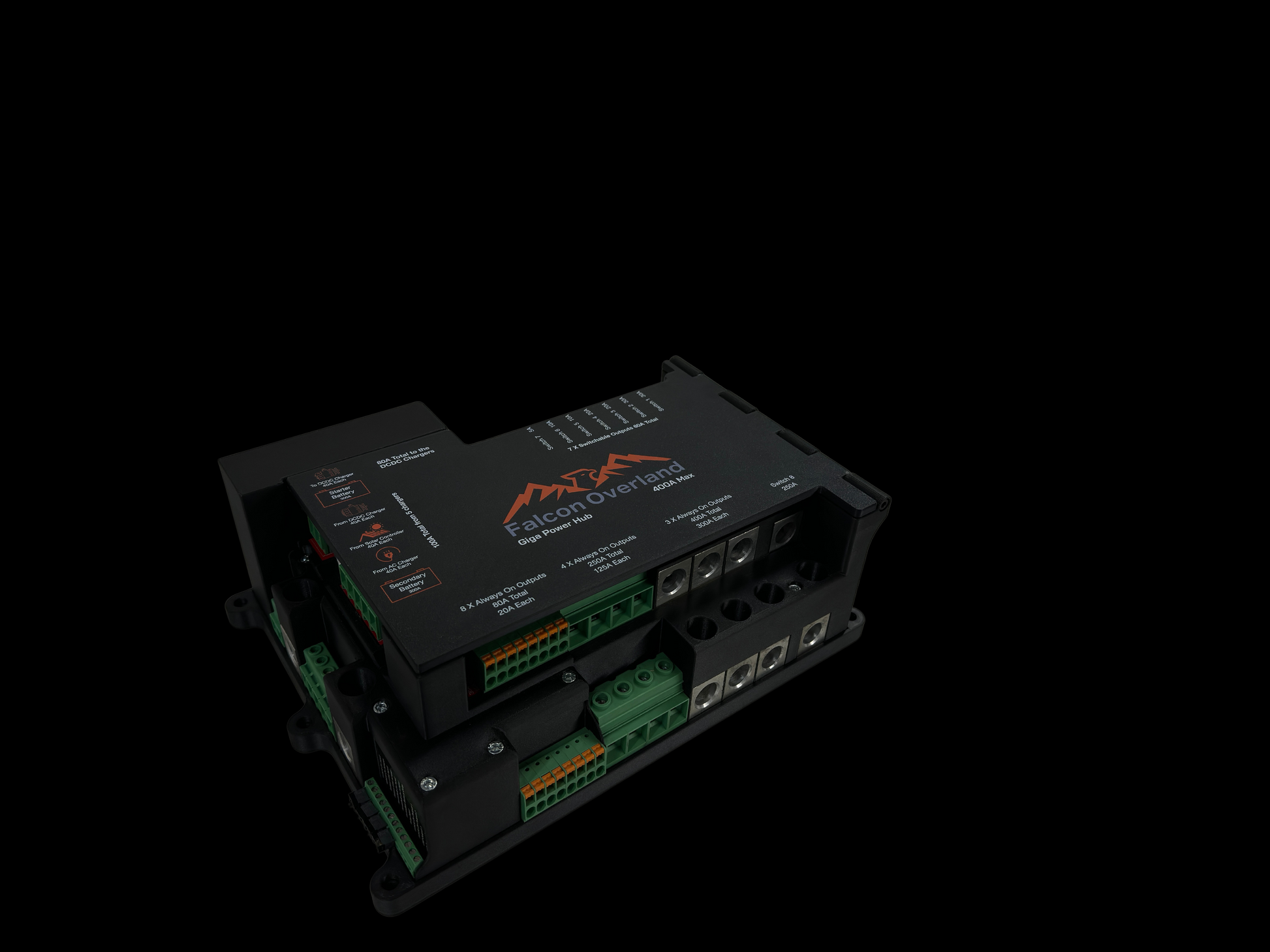

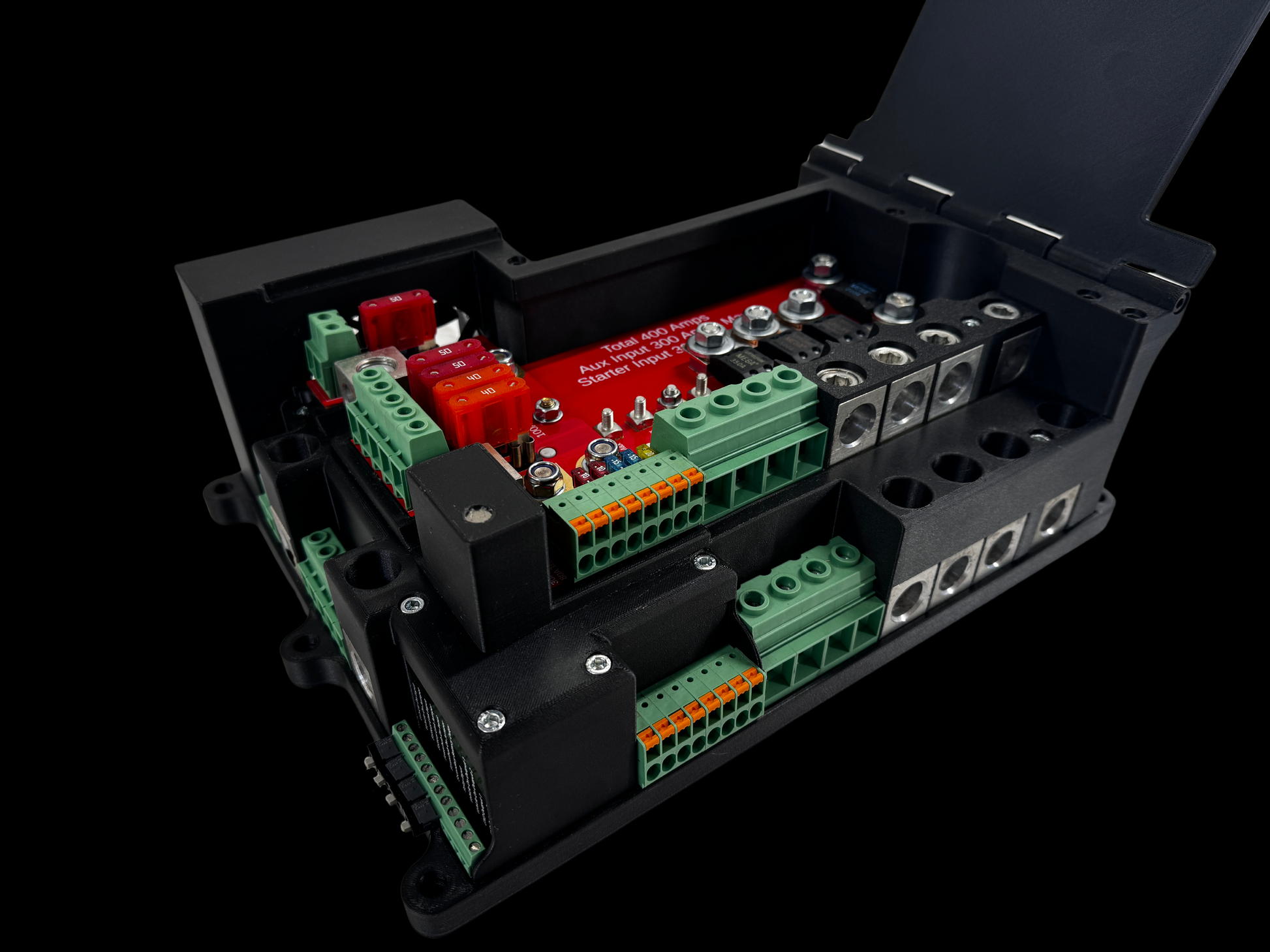

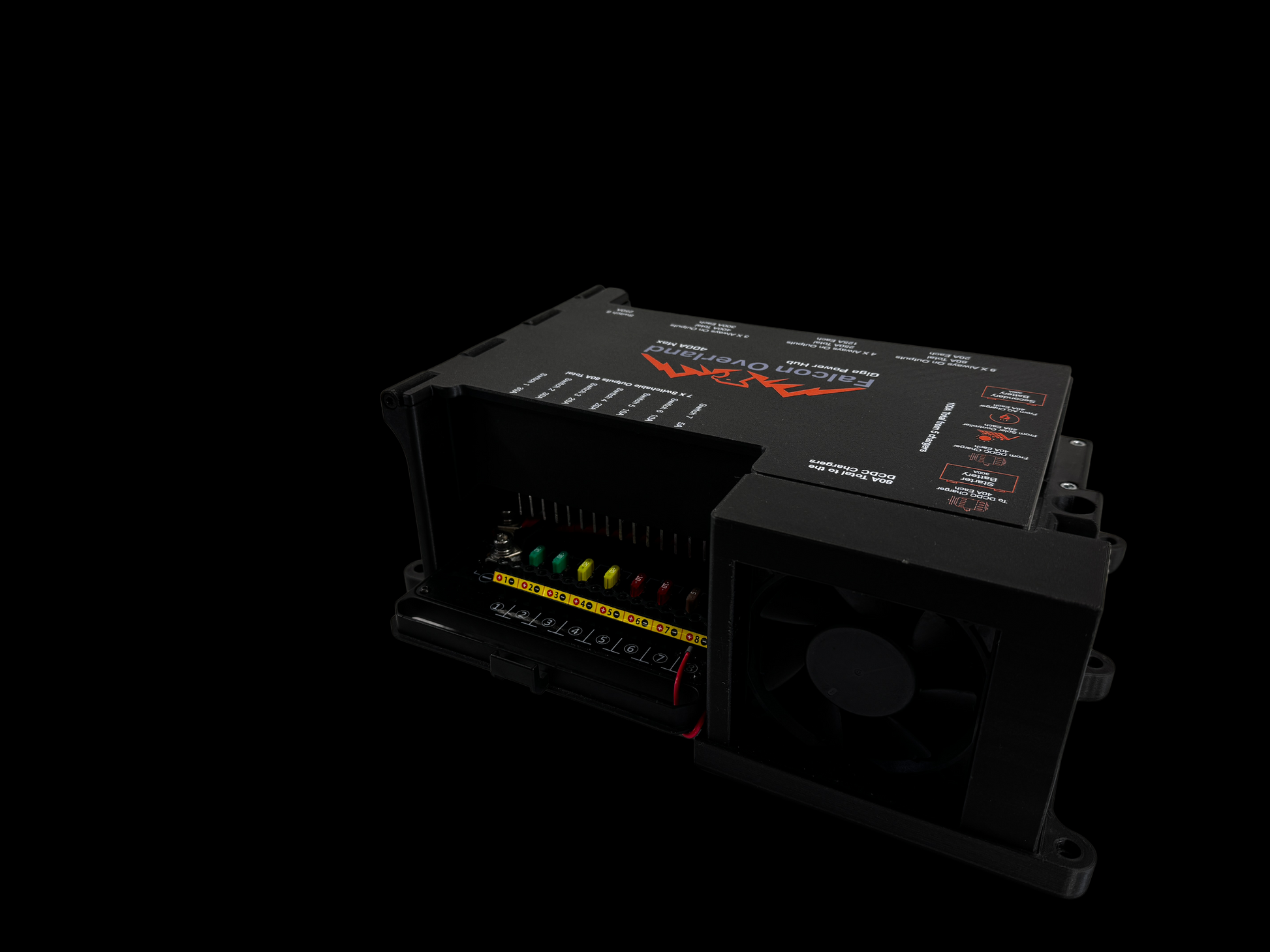

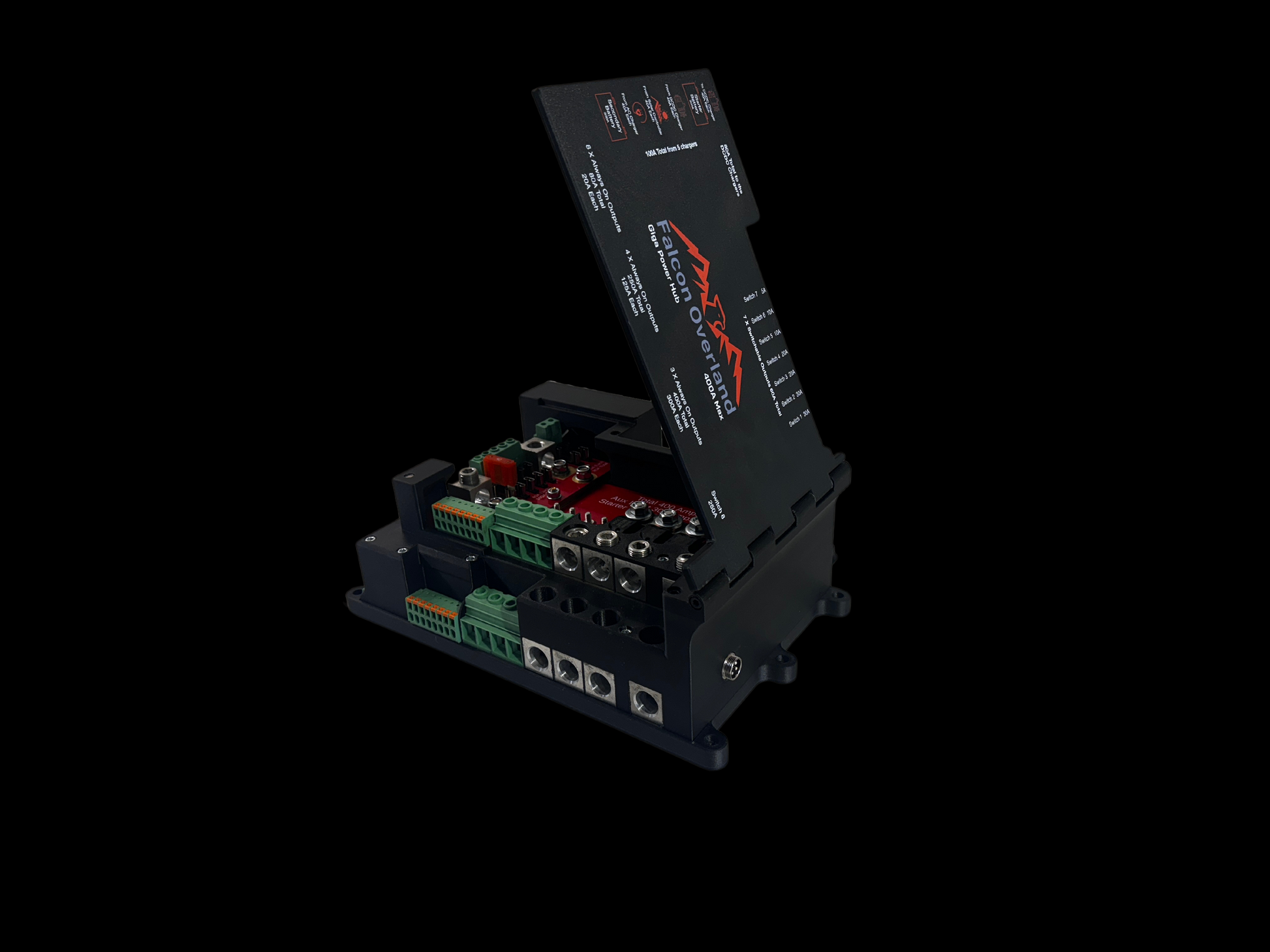

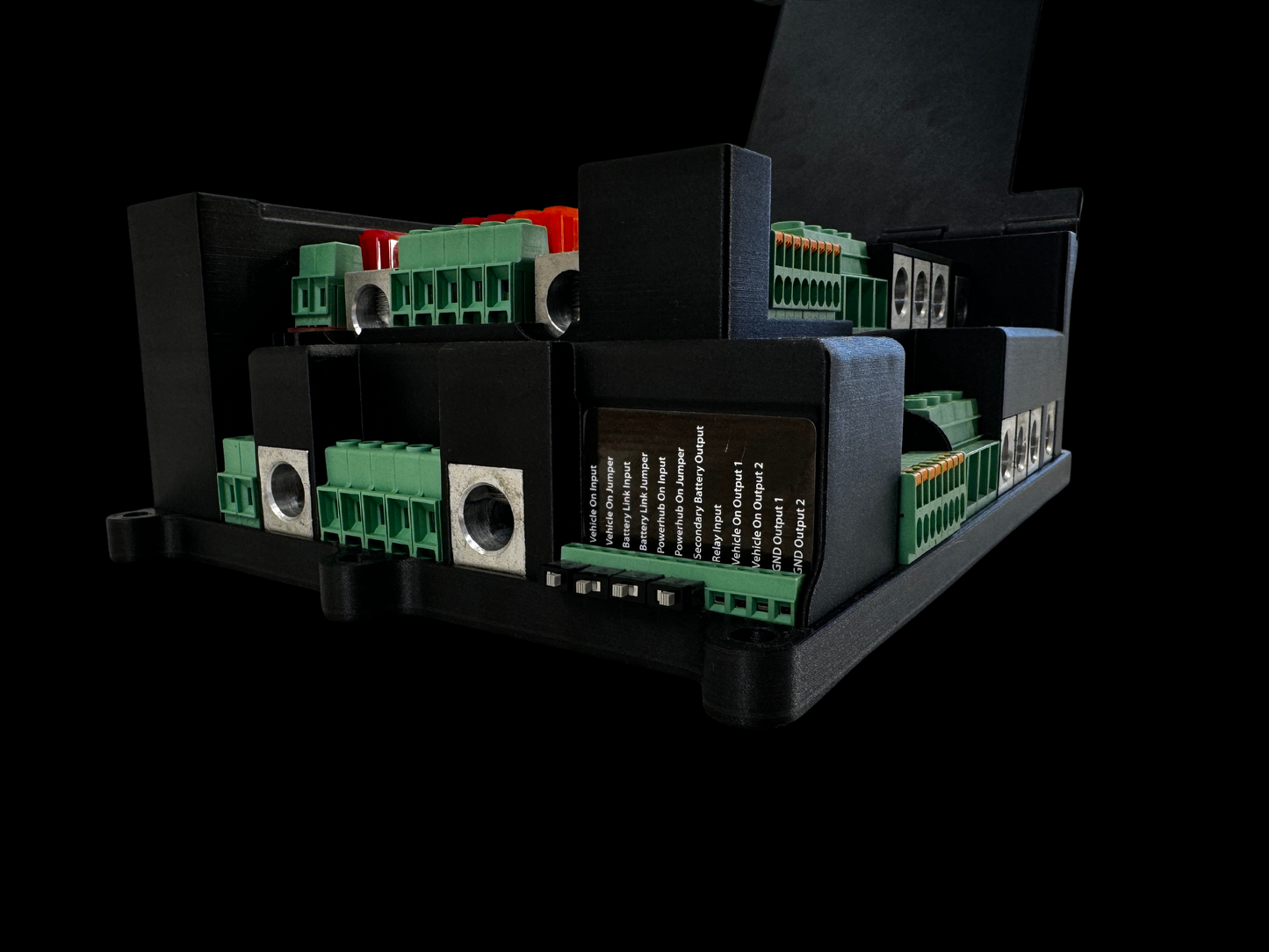

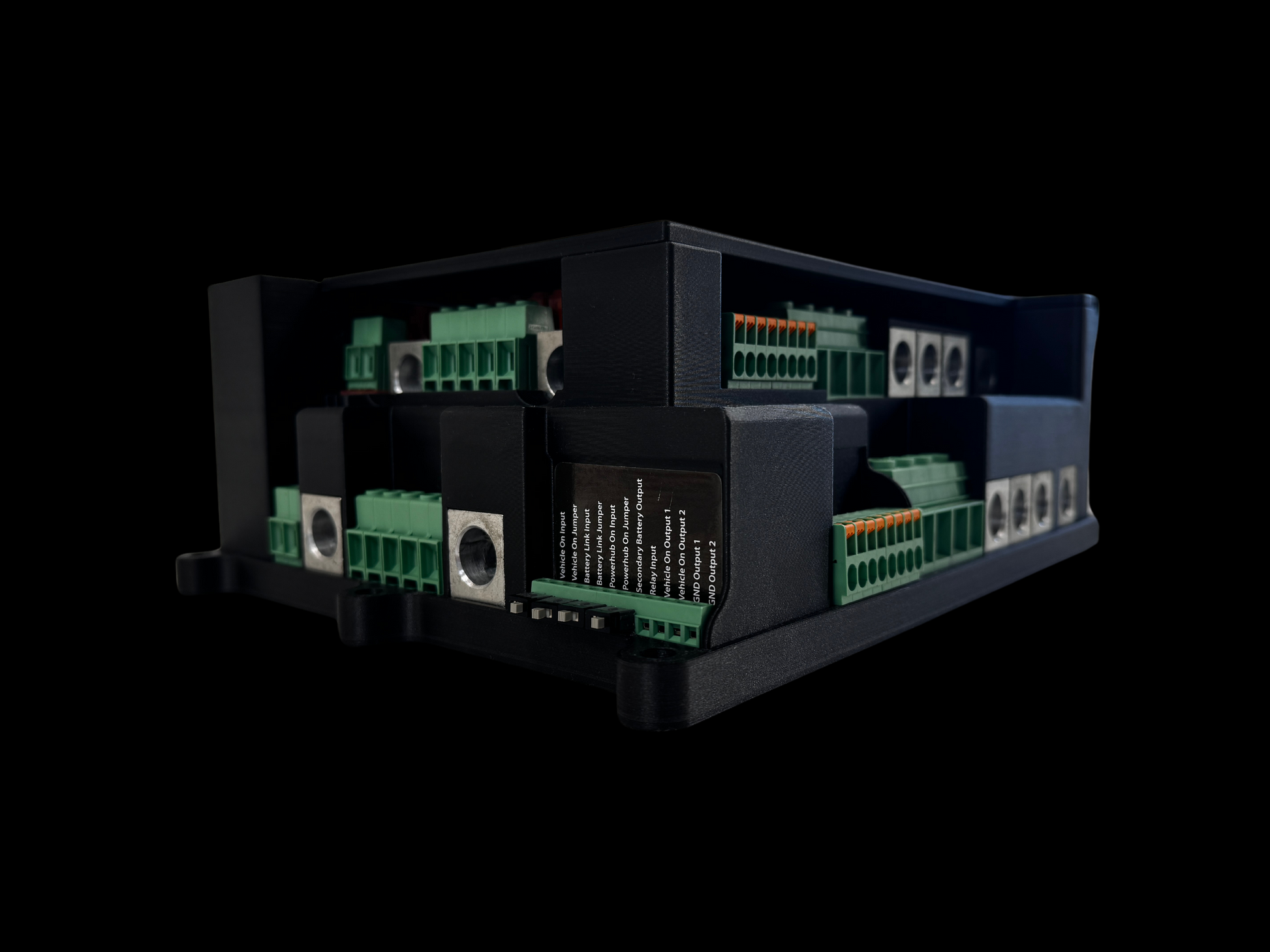

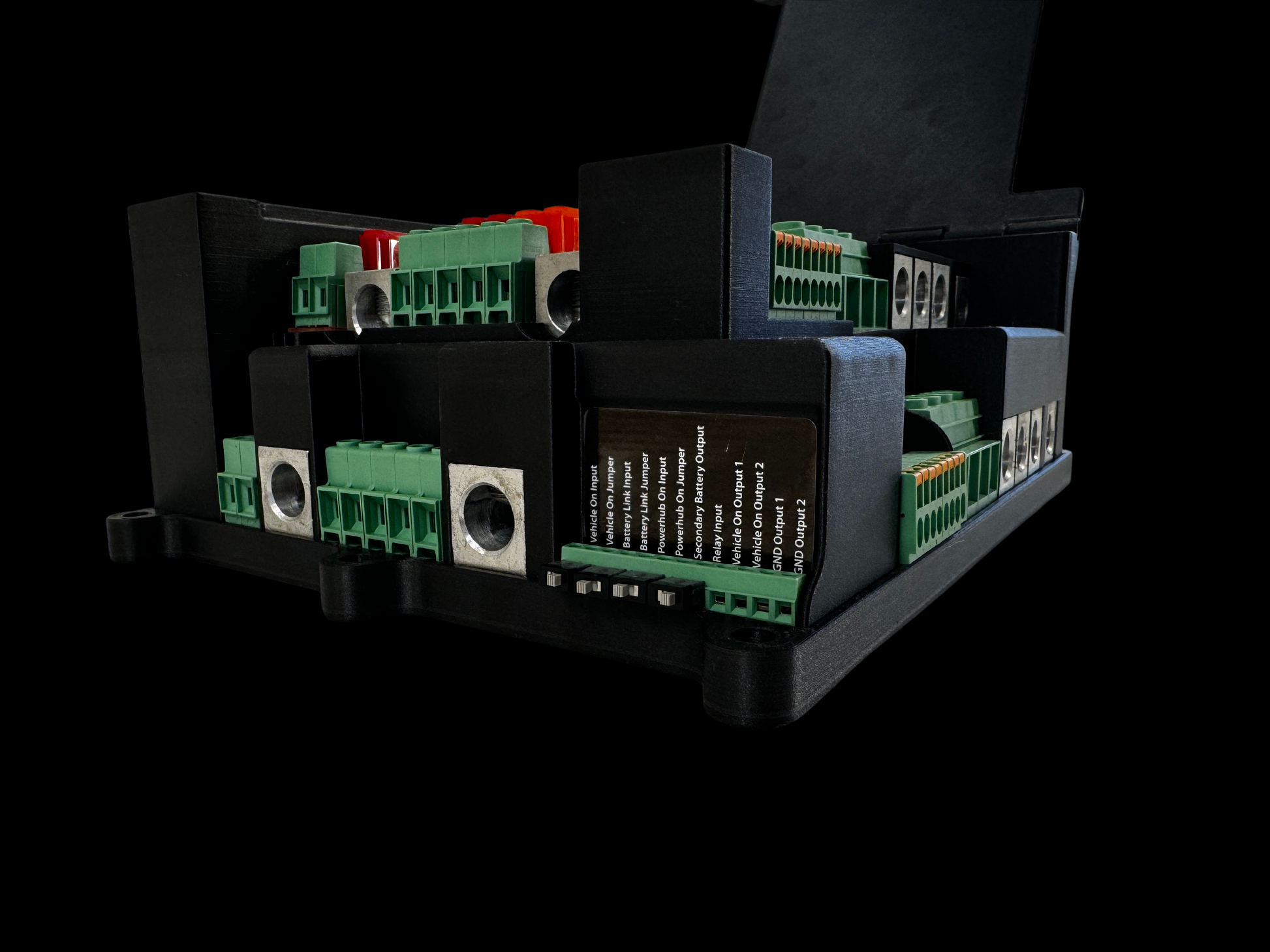

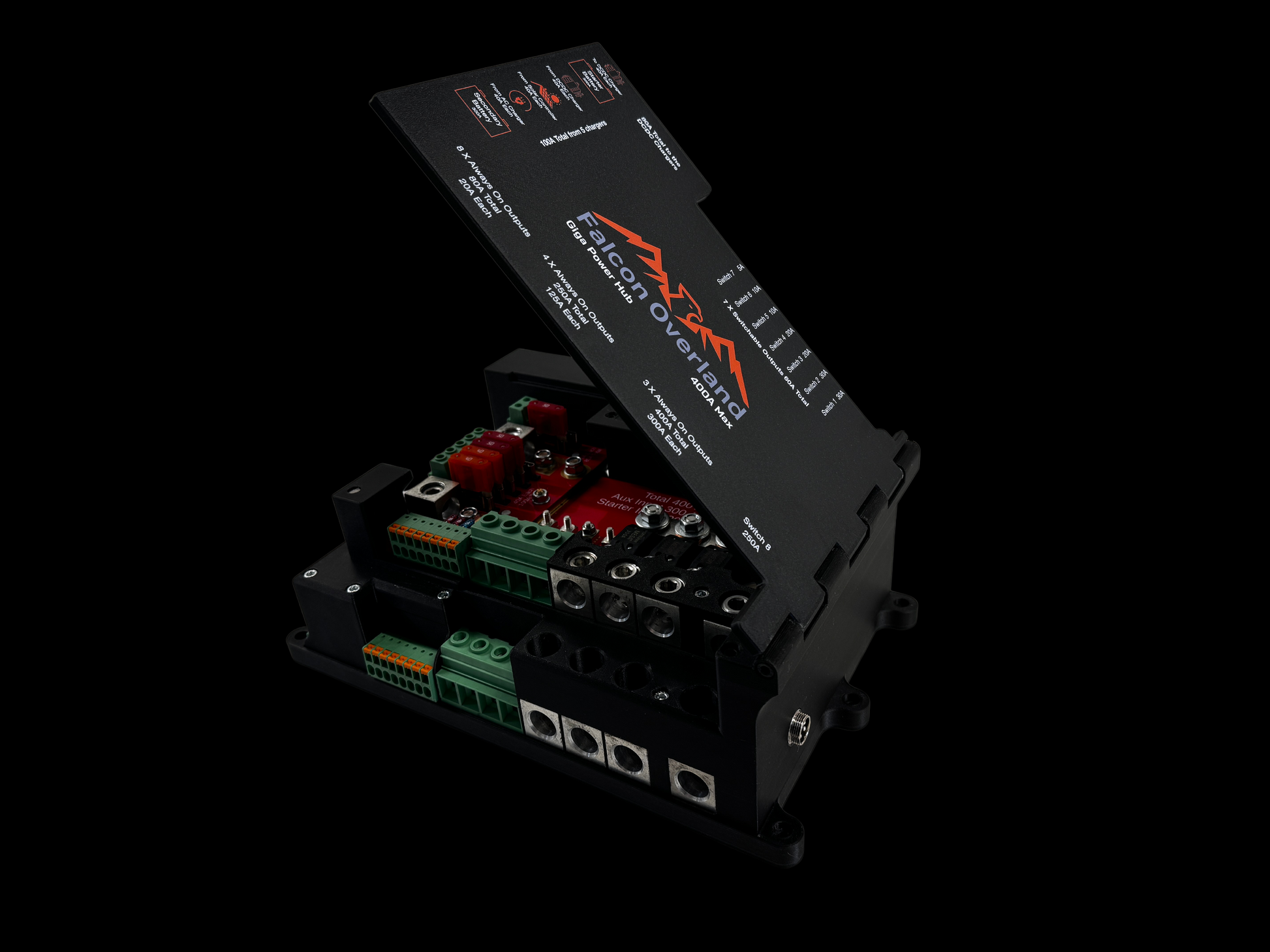

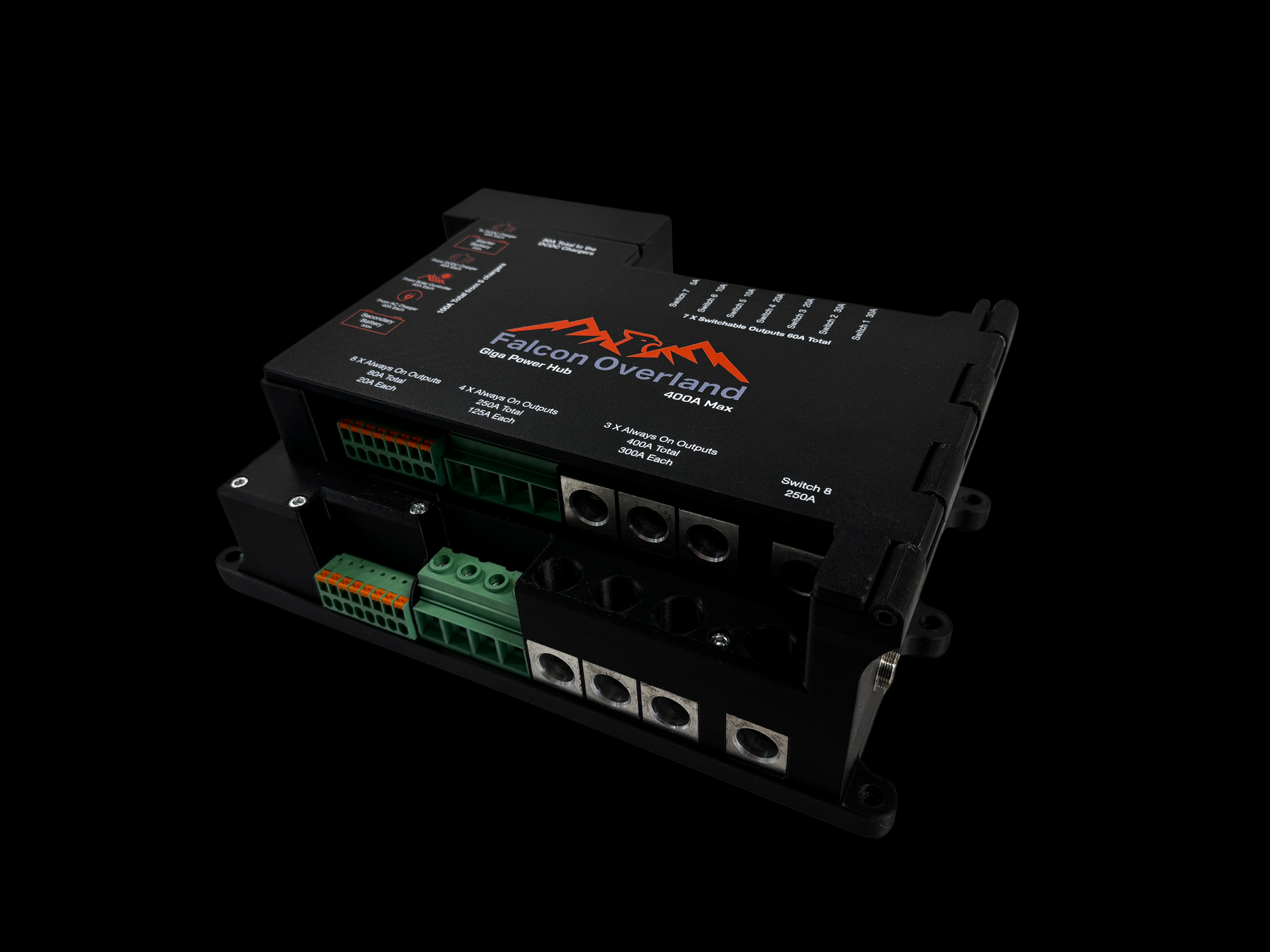

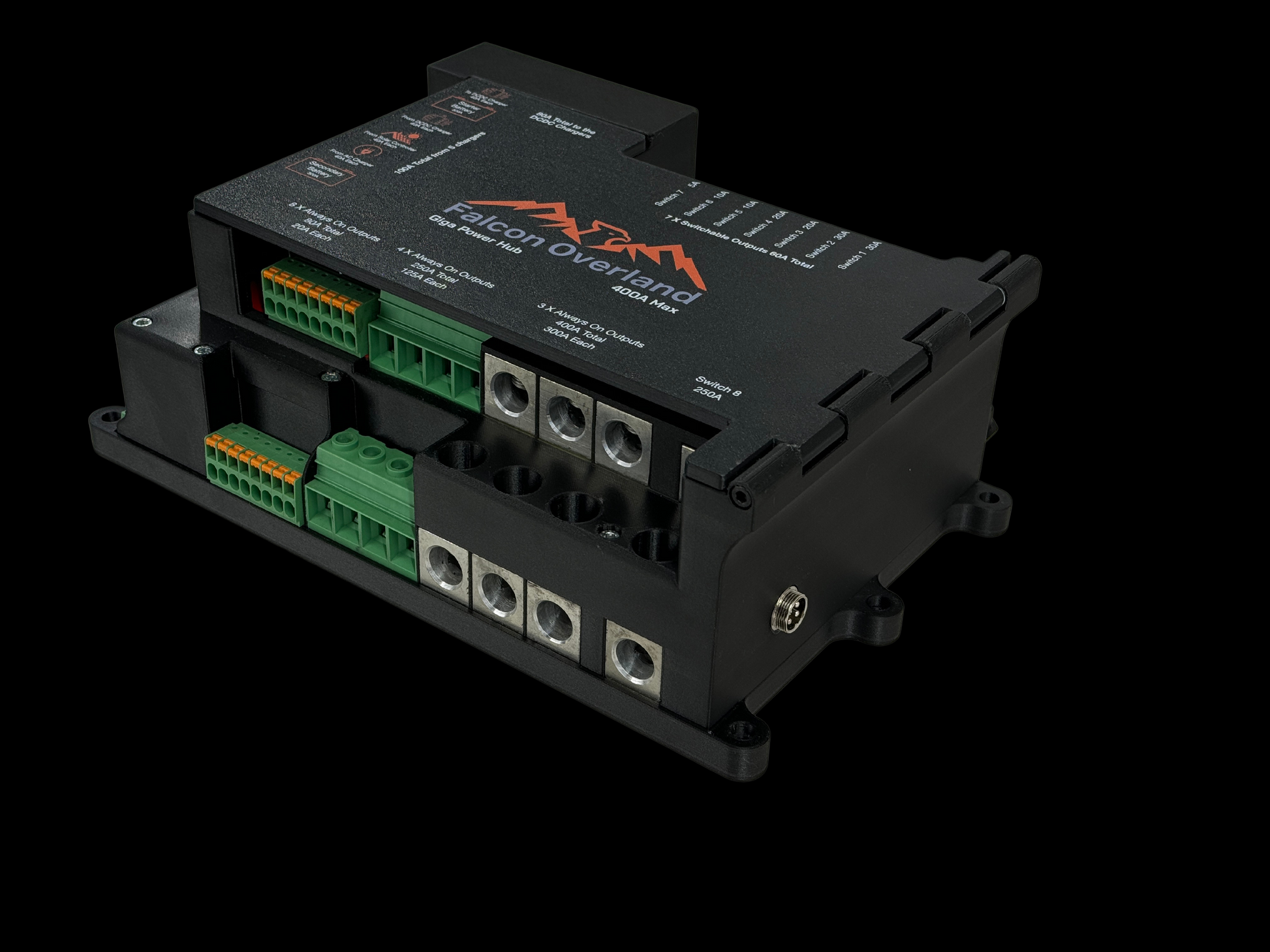

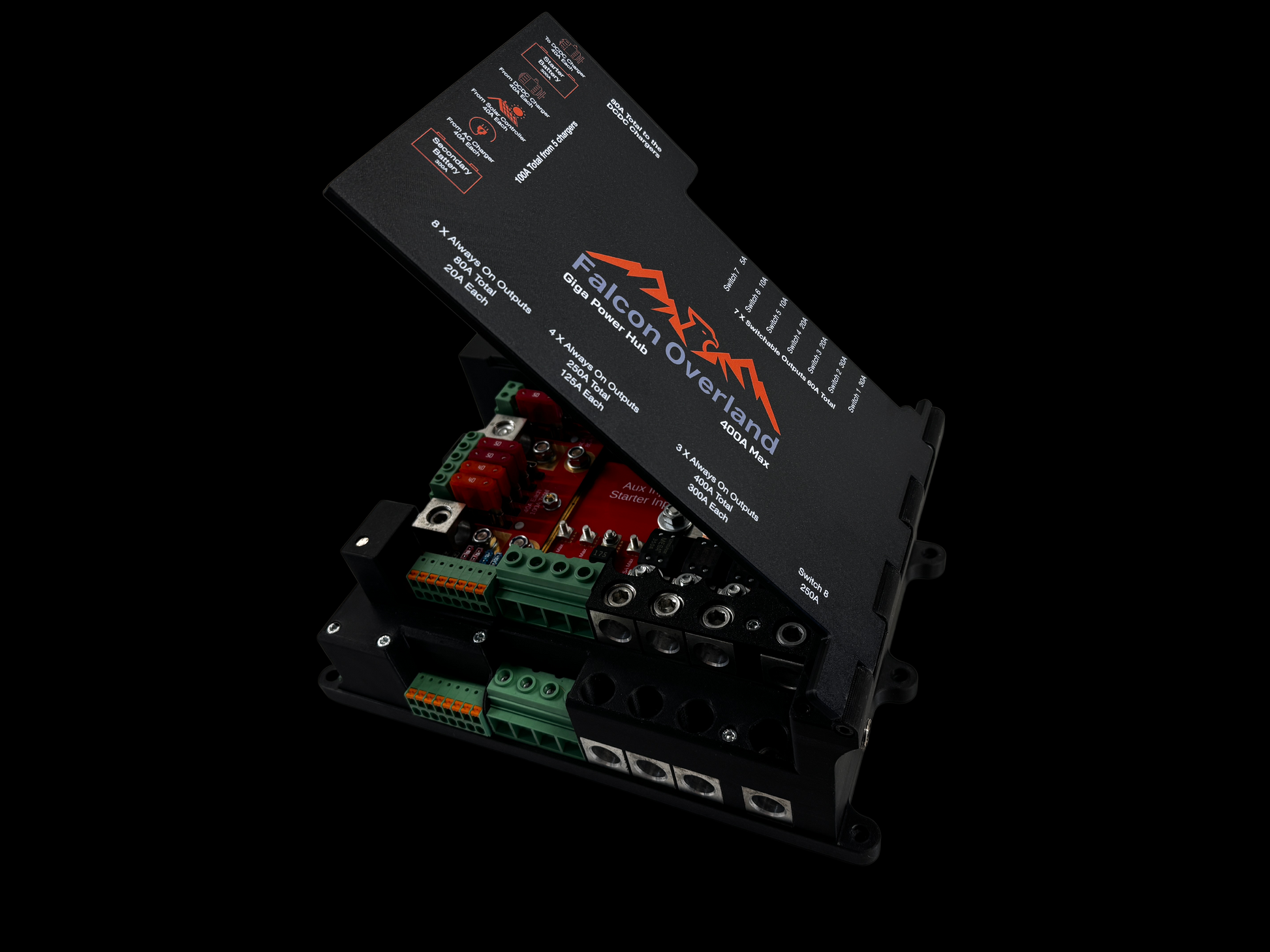

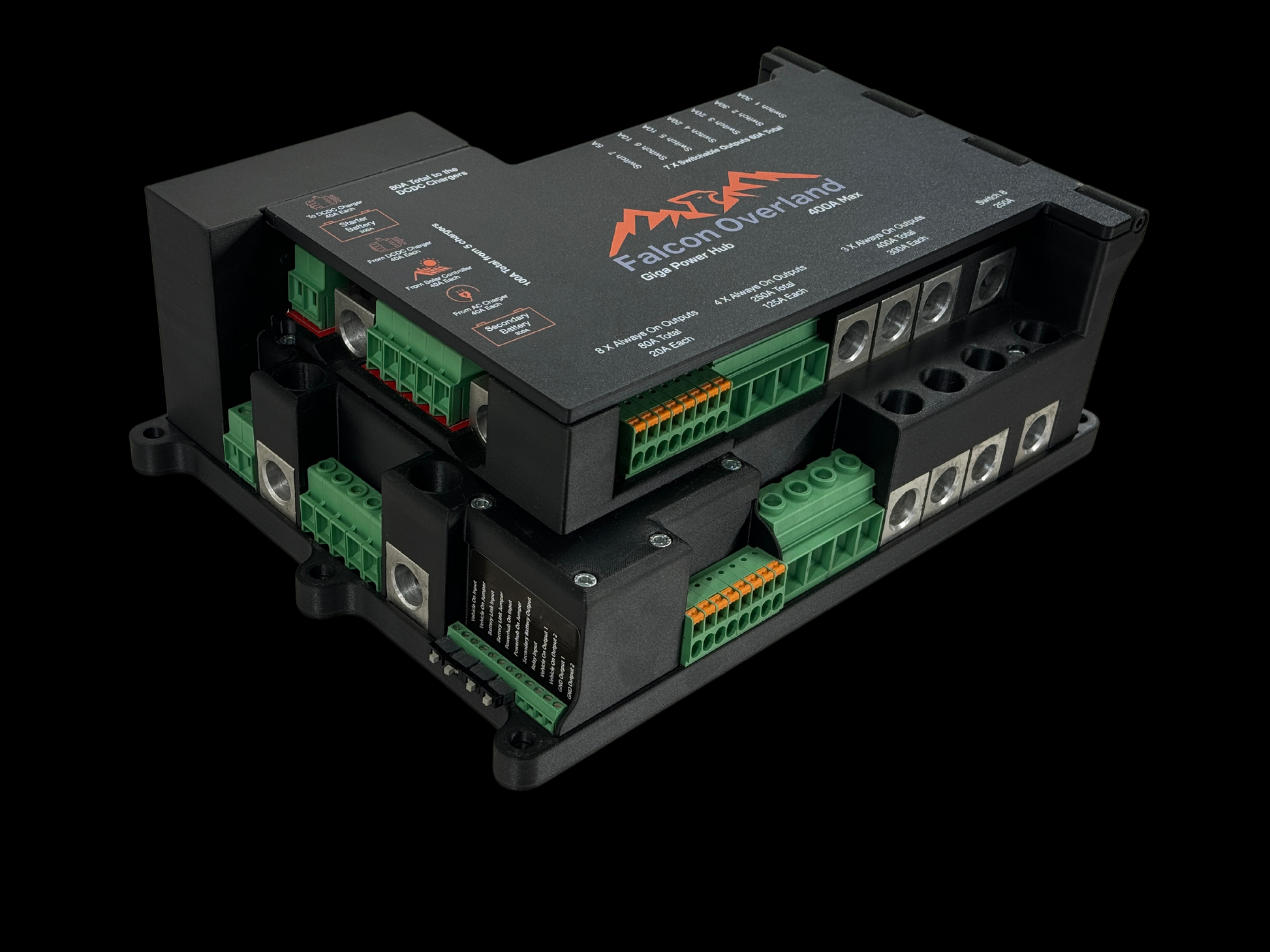

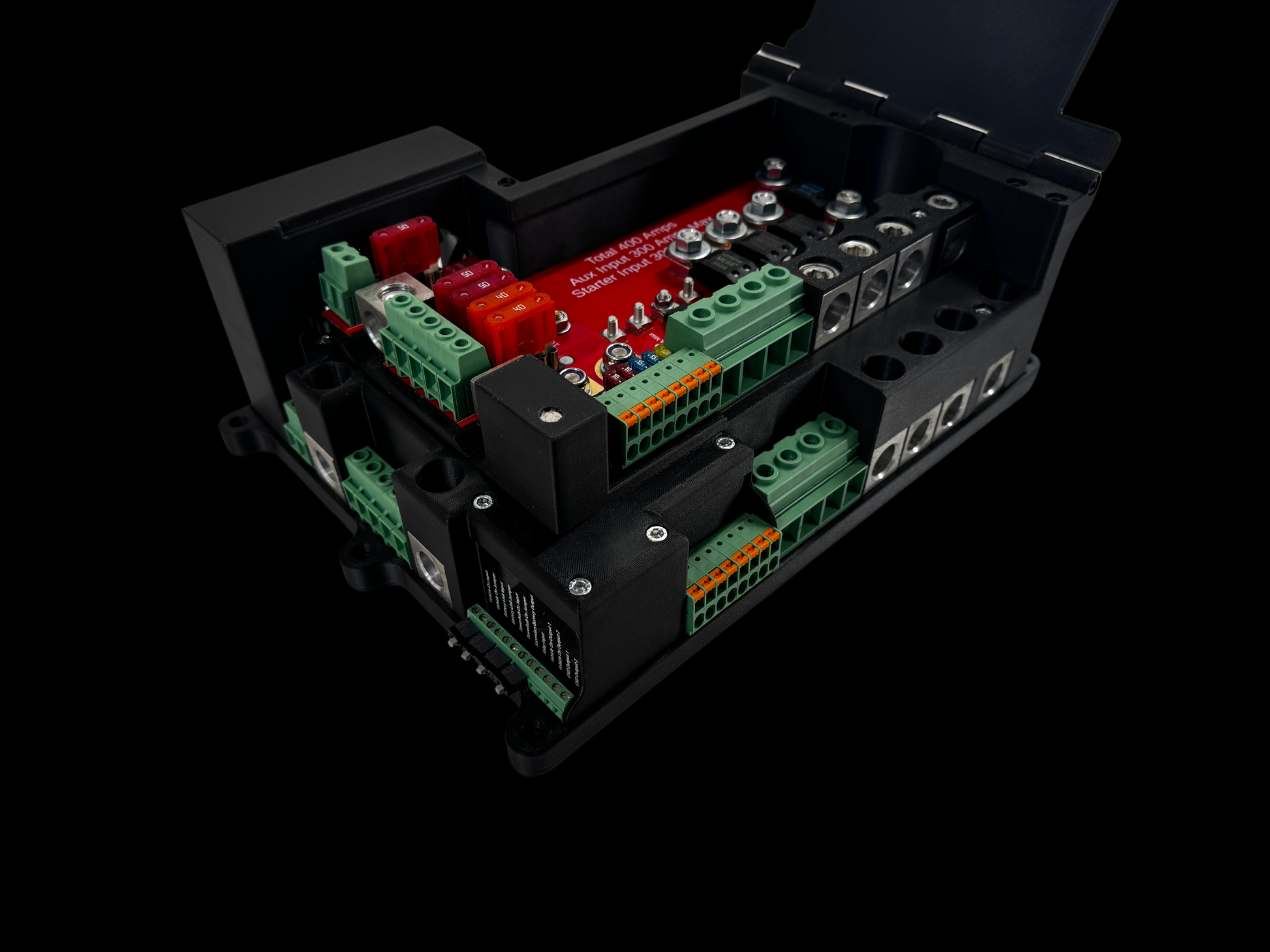

Introducing the Giga Power Hub: Simplify Your Campervan’s Electrical System
Wiring your campervan’s electrical system doesn’t have to be complicated or time-consuming. The Giga Power Hub streamlines the entire process, making it faster, safer, and easier—even if you’re not an electrical expert.
Why Choose the Giga Power Hub
- Unparalleled Simplicity: Replace numerous components like switches, relays, busbars, and isolators with one central hub.
- Massive Time Savings: Reduce installation time by up to 70%. A 40-hour job now takes just 12 hours!
- Easy Installation: No need for special connectors, tools or ring terminals, we use simple ferrules for a quick setup.
- Future-Proof and Compatible: Built to last a lifetime, it’s compatible with all brands, with no proprietary connectors.
Upgrade Made Easy:
Adding new accessories later? Just connect the wires and insert the correct fuse—no complicated wiring required.
Beta Product Benefits:
The Giga Power Hub is still under its Beta phase which means we are wanting people that are happy to send us product improvement ideas.
Please read our terms and conditions section about our Beta Products before purchasing.
In return we will give you a year’s free product design service and a lifetime warranty.
Key Features
-

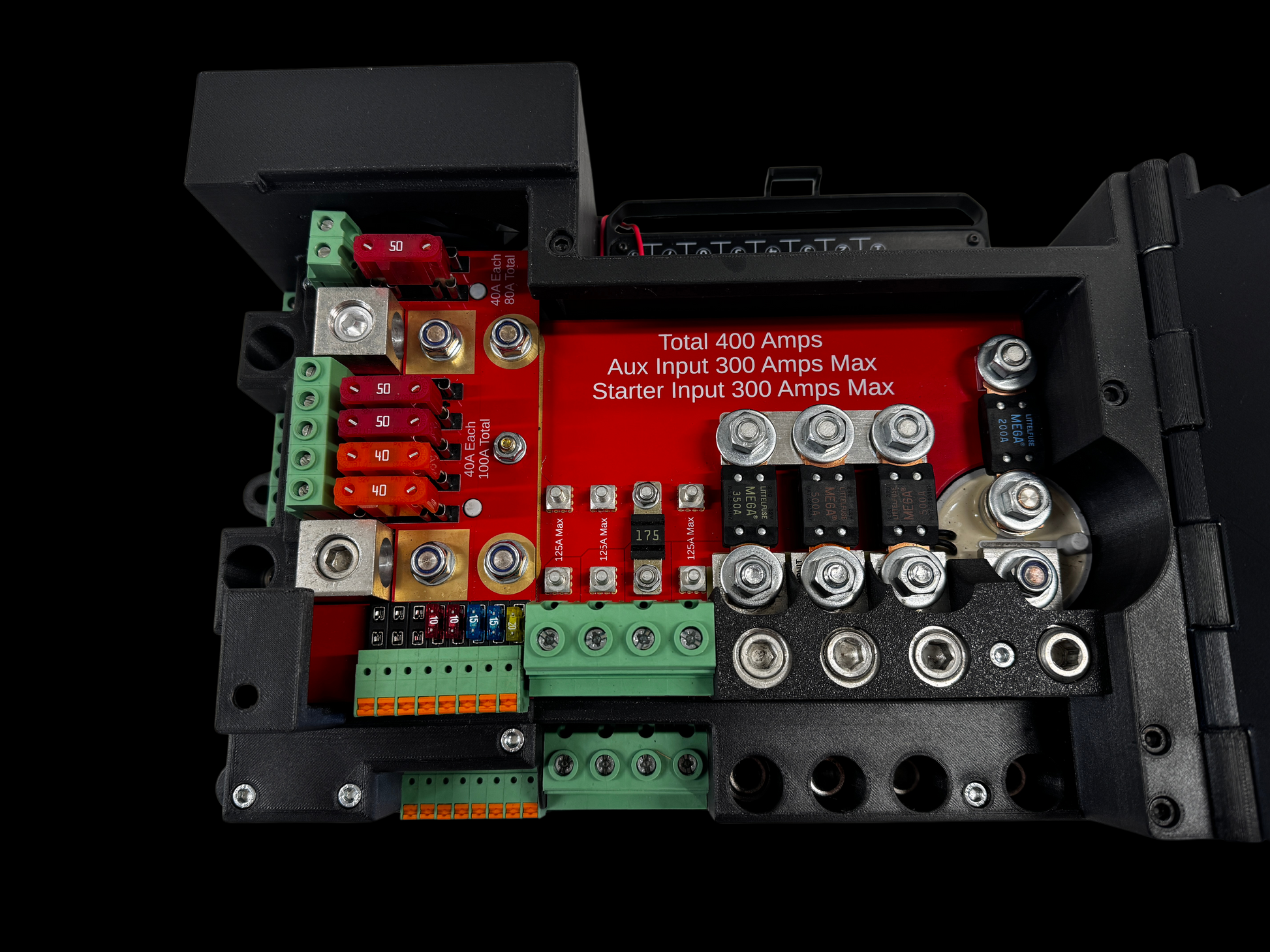

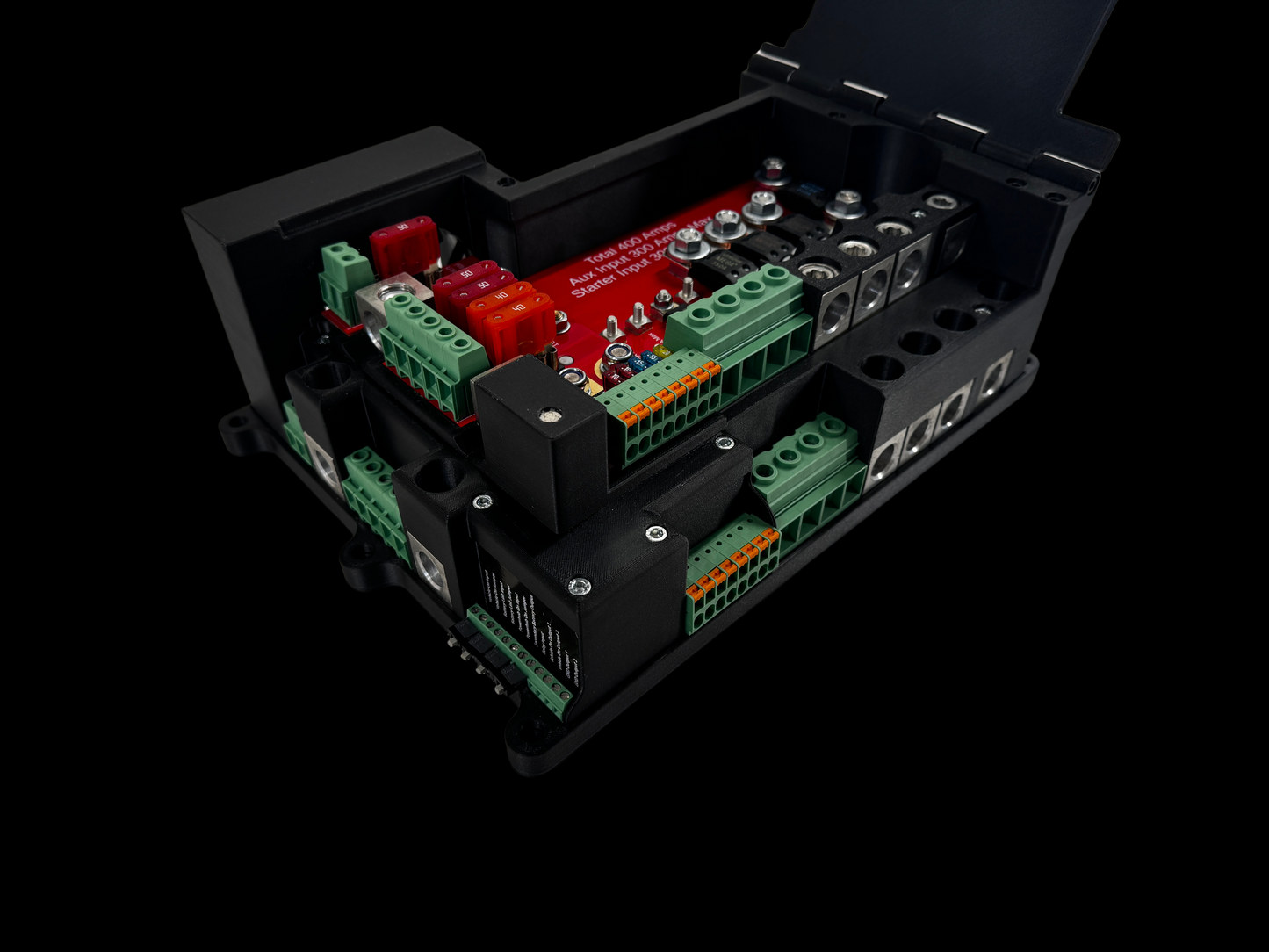

Battery Inputs:
- 300A Secondary Battery Input
- 300A Starter Battery Input
- 400A Combined Input
-
Charging Inputs/Outputs:
- 2 x DCDC charger outputs 40A each
- 5 x Charger inputs 40A each (up to 100A combined).
-
Load Outputs:
-
Standard Outputs:
- 8 x 20A outputs (up to 100A combined).
-
High-Capacity Outputs:
- 4 x 125A outputs (up to 300A combined).
- 3 x 300A outputs (up to 400A combined).
-

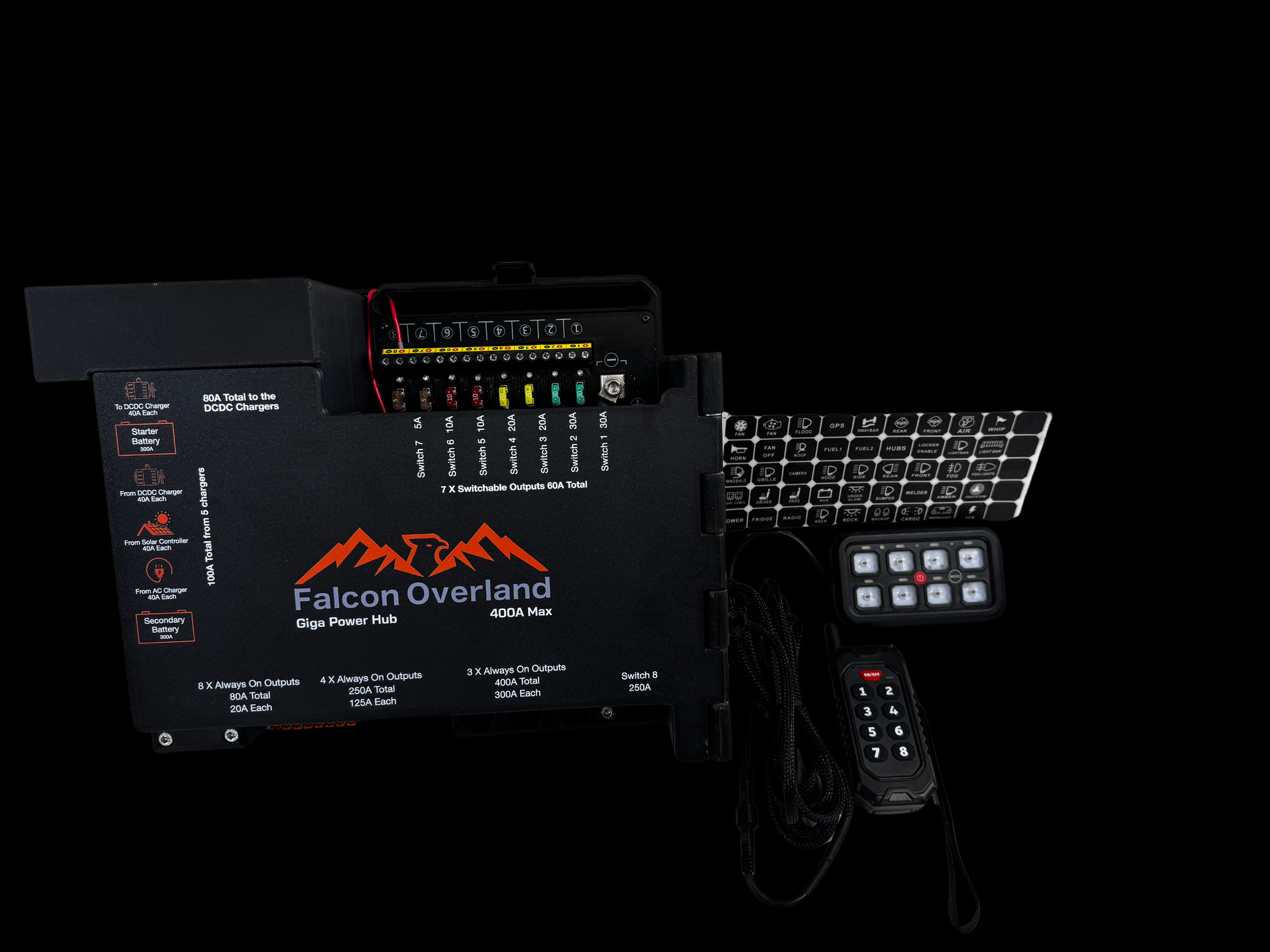

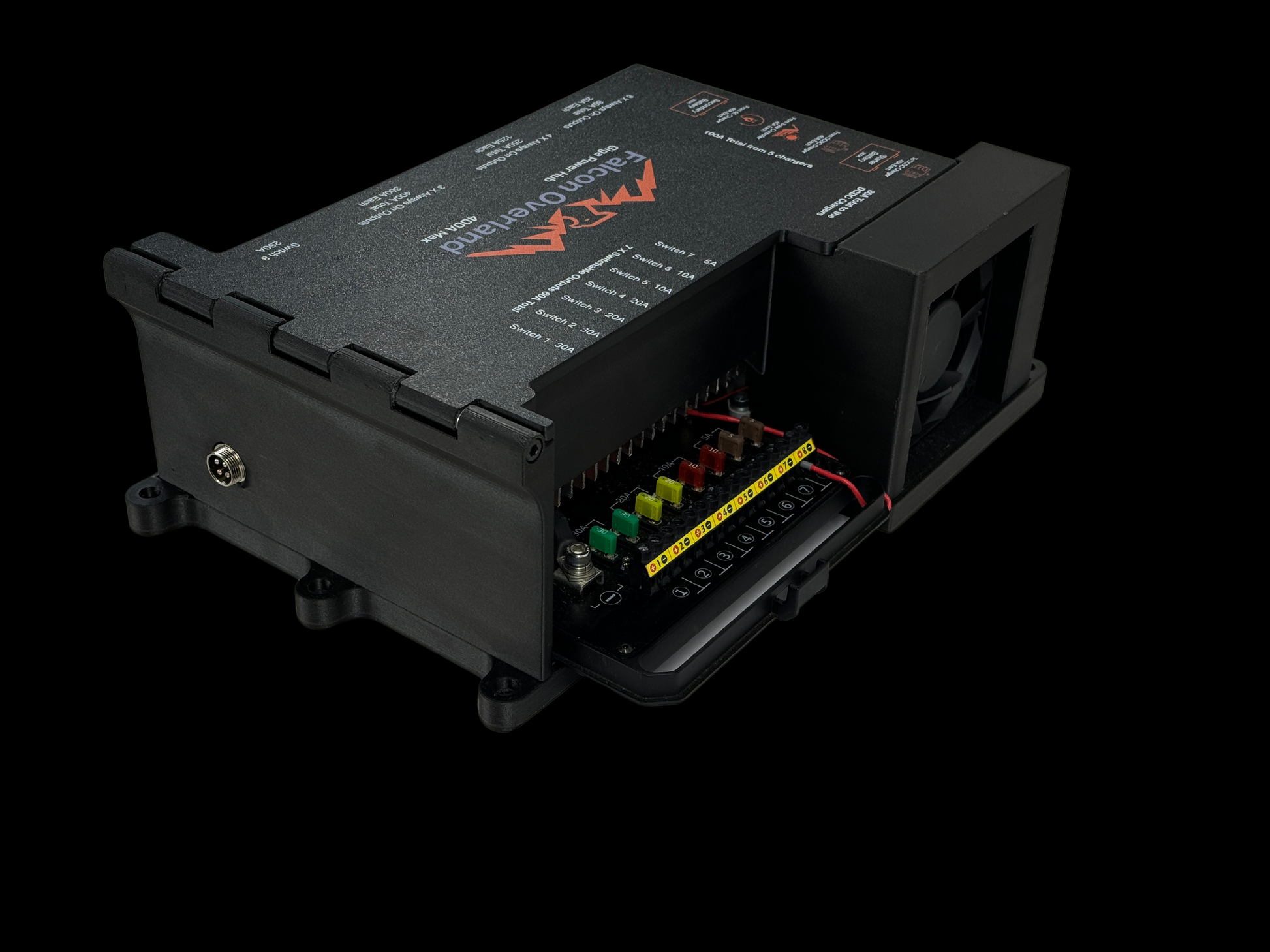

Switchable Outputs:
- 1x 250A switched output.
- 2x 30A switched outputs.
- 2x 20A switched outputs.
- 2x 10A switched outputs.
- 1x 5A switched output.
-
Standard Outputs:
Fuses sold separately
